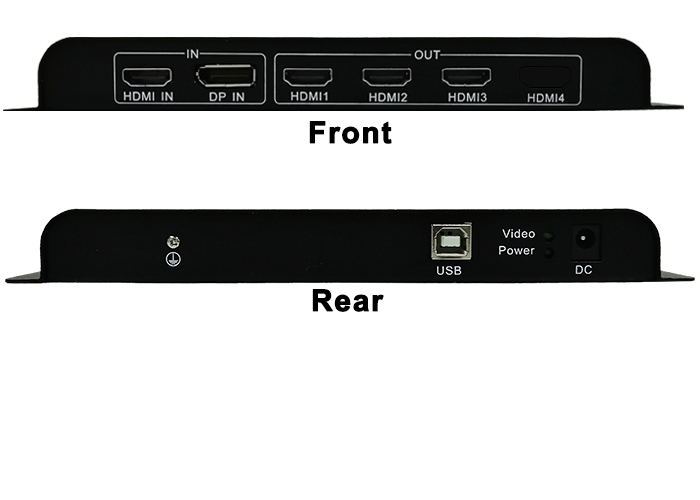

With one DP input, one HDMI input, and three HDMI outputs, this multi-screen controller can capture a single video signal across up to three screens at resolutions of up to 3×1920×1200@60Hz. It provides multiple operation modes including splicing and splitting.
Ideal for HD monitoring,multiscreen gaming,cutting-edge fusion,command and control system, video conference,outdoor advertising,circular-screen movie theater, large-screen splicing applications etc.
Connection diagram:
1) High-performance industrial-grade product with HDMI/DP input and HDMI output ports
2) Supports various layout configurations, including 1x3, and 1x2 layouts
3) DP1.4 and DP1.2 compliant, compatible with USB Type-C signals
4) Supports screen splicing and splitting modes
5) Combine this video wall controller with multi-monitor graphics cards to create ultra larger high definition video walls.
6) 2U rack mounted, centralized power supply for easy management
7) Ultra-low power consumption, energy-efficient for continuous 24/7 operations
8) Advanced pure hardware structure with high-performance programmable FPGA array, fast processing speed without delay.
