With one DP input, one HDMI input, and Four HDMI outputs, this multi-monitor controller can capture a single video signal across up to four screens at resolutions of up to 4×1920×1200@60Hz (backwards compatible). It provides multiple operation modes including splicing and splitting.
The MDD-304 arranges displays in 4x1, 1x4, 2x2, 3x1, 1x3, 2x1, or 1x2 configurations, in vertical or horizontal orientation,and combine them to create large-scale video walls.
Ideal for HD monitoring,multiscreen gaming,cutting-edge fusion,command and control system, video conference,outdoor advertising,circular-screen movie theater, large-screen splicing applications etc.

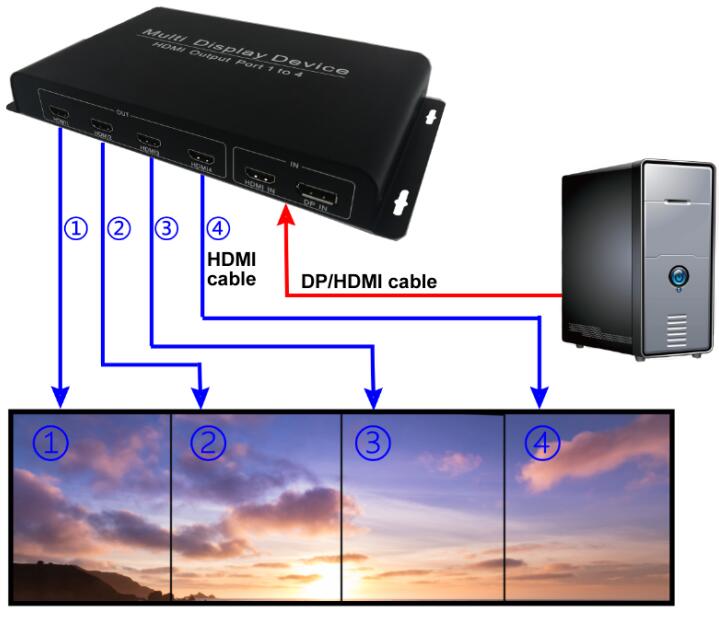

Connection diagram:

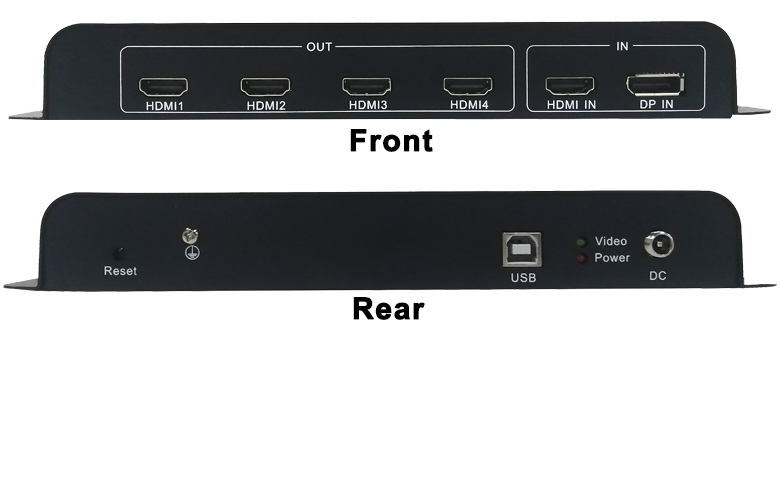

1) High-performance industrial-grade product with HDMI/DP input and HDMI output ports;
2) Supports video wall configurations with displays in landscape or portrait orientations
• Landscape (horizontal) orientation: 1x2, 1x3, 1x4
• Portrait (vertical) orientation: 2x1,3x1,4x1,2x2
3) DP1.4 and DP1.2 compliant, compatible with USB Type-C signals;
4) Supports screen splicing and splitting modes;
5) Combine this video wall controller with multi-monitor graphics cards to create ultra larger high definition video walls;
6) 2U rack mounted, centralized power supply for easy management;
7) Ultra-low power consumption, energy-efficient for continuous 24/7 operations;
8) Advanced pure hardware structure with high-performance programmable FPGA array, fast processing speed without delay;
