HDE-200D(HDMI+RS232+IR H.264 Network Transmitter)
HDE-200D(HDMI+RS232+IR H.264 Network Transmitter)
Share to:

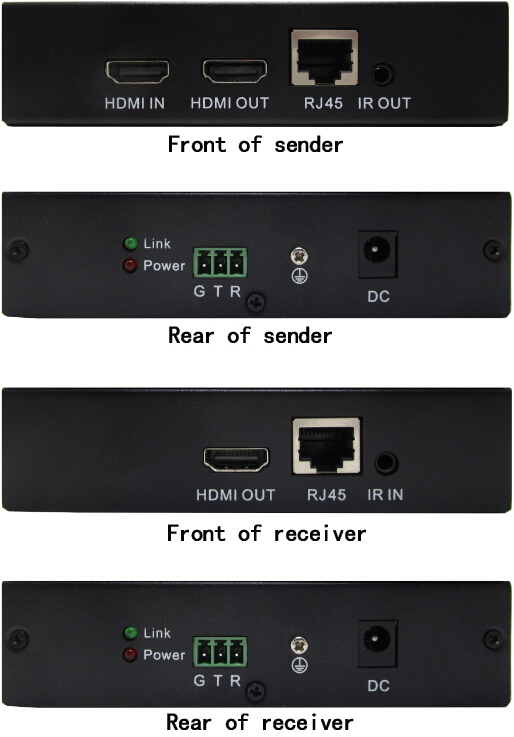

     The product include one transmitter(marked with sender) and one receiver (marked with receiver),it adopt H.264 high-definition digital video compression technology, using a single network cable can extend signal source HDMI, IR, RS232 interface 200 meters away, support up to 1080P resolution.
     The product can be widely used in security monitoring, multimedia information dissemination, video conferencing, energy and power supply industries, government departments, medical systems, commercial displays, utilities and other fields.

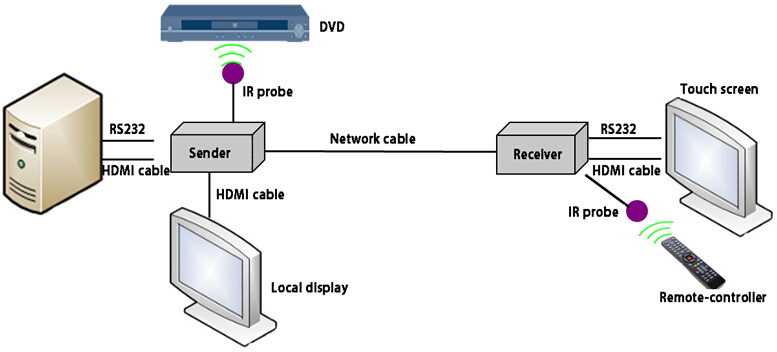

One-to-one connection diagram

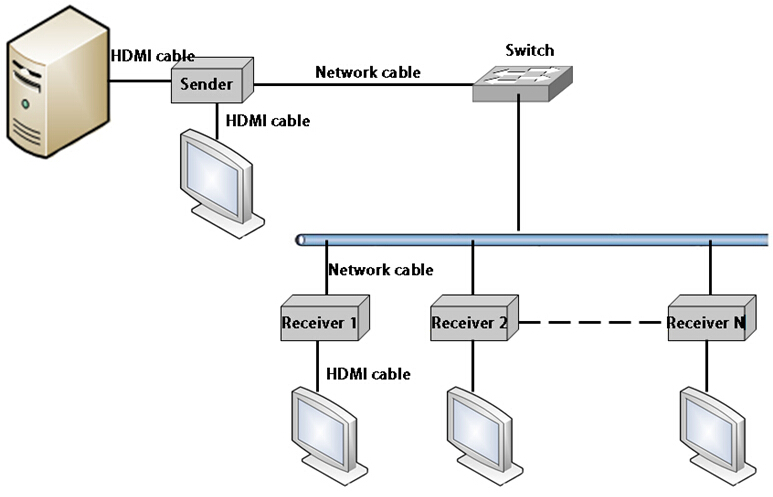

One to many connection diagram

1. Using H.264 high-definition digital video compression technology, product stable and reliable, clear video, small stream, low latency;
2. Support the highest resolution up to 1920x1080 @ 60Hz;
3. Support through the LAN transmission,
4. Connect LAN switch can increase the transmission distance, and a sender match multiple receivers can achieve the distribution function;
5. Sender with HDMI loop out interface;
6. Wide voltage work, DC5V-12V, easy to use on-site power supply;
7. Serial port support bidirectional transmission (optional);
8. Infrared function (optional).

Function

Number of input signal

Sender1CH(HDMIRS232)

Receiver1CH IR

Number of output signal

Sender1CH(HDMIIR)

Receiver1CH(HDMIRS232)

Transmission distance

Direct connection0-200 meters

Video transmission performance and interface

I/O connector

HDMI

HDMI version

HDMI1.3

HDCP

HDCP1.2

HDMI resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

Infrared remote control performance and interface

Remote control interface

3.5mm audio port

Remote control interface signal

Infrared control signal

RS232

Interface

Industrial terminals

Attribute

Size (L×W×H)

Sender:  120mm×106mm×30mm
Receiver:120mm
×106mm×30mm

Case

Iron

Color

Black

Power supply

Voltage range

DC9V/1A

Sender consumption

4W

Receiver consumption

3W

Operating environment

Working Temperature

-15-55

Storage temperature

-40-80

Relative humidity

0-95% (No condensation
