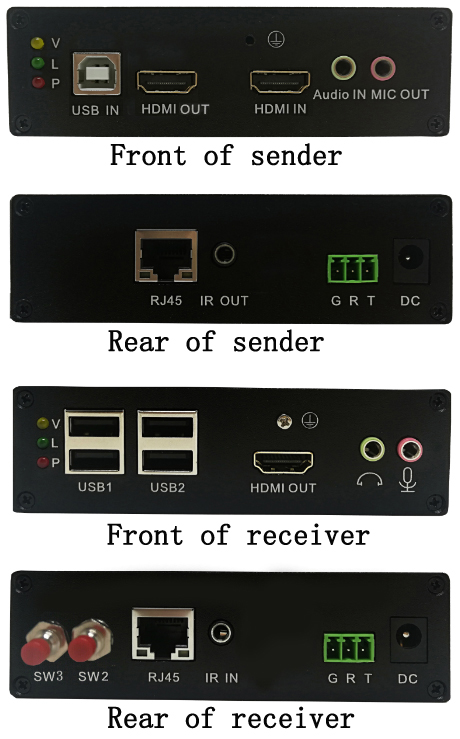

The kit comes as a pair, with one Sender unit(marked
with sender) and one Receiver unit(marked with receiver).
It
extends Full HD resolution 4Kx2K HDMI video,audio and USB signals from Sender
to the Receiver via single CAT5e/6/7 cable at a distance of up to 150m. It features a local HDMI output on
the sender for local display support enabling you to see what you are extending.
Moreover, the IPHEL-125UAS supports RS232 &
IR control. RS232 control lets you connect a serial I/O device at your display
location - an ideal solution for adding a serial touch screen interface to your
remote display. While the IR extension enables you to control an IR-enabled
source device, such as a Blu-ray player or TV Set-top box.
Ideal for HD security monitoring, multimedia release
system, video conference, multi-media classrooms , PC centralized management system, large screen advertising, screen splicing applications etc.

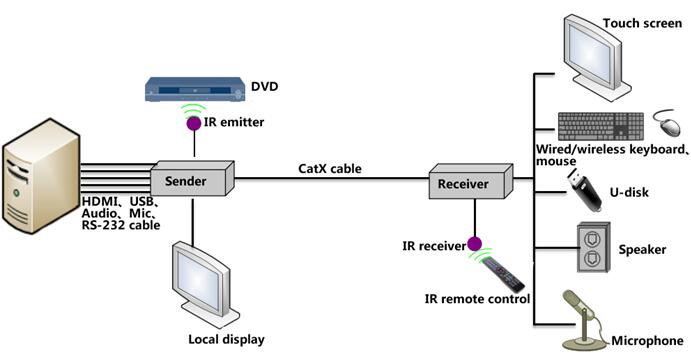

Point-to-point connection
diagram:

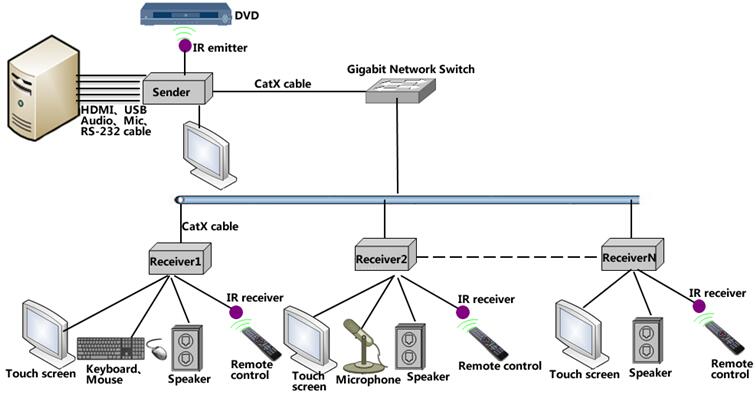

Point to
multi-point connection diagram:
1. Digital video transmission with zero latency, and 100%
true picture at destination even over long distance
2. It
features a local HDMI output on the sender for local display support enabling
you to see what you are extending
3. Supports
video resolutions up to 4K×2K@30Hz
4. HDMI 1.4
compliant, 3D video supported
5. Ensure compatibility for your remote displays with EDID pass-through；
6. The extender features a built-in 4-port USB
2.0 hub that also lets you connect four remote USB peripheral devices at your
display location.
7. Features 3.5mm jacks on both the transmitter and receiver for 2 channel
audio support
8. Bi-directional
RS-232 extension
9. Supports
connections via Gigabit Lan Ethernet
10. Direct 1-to-1 connection and 1-to-many connection through Gigabit network switch, a transmitter to
multiple receivers, you can accomplish the extender and splitter function
11. IR
control,RS-232 serial,audio functions optional
