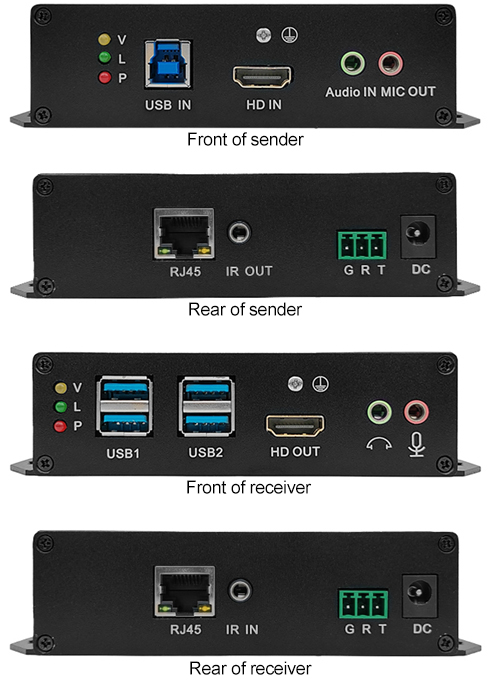

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
This product consists of a complete set of equipment, one of which is a transmitter (marked with the word 'Sender') and the other is a receiver (marked with the word 'Receiver'); It can extend HDMI video, independent audio, microphone, USB 3.0 to the remote end through a single Ethernet cable, and can also transmit RS232 serial port signals simultaneously for long-distance transmission with touch screens, gimbals, electronic whiteboards and other devices. IR infrared signals can be used for infrared remote control of DVD, set-top boxes and other devices. The maximum transmission distance is 120 meters, and users can remotely control and use the computer. The image effect is clear and natural, and it supports resolutions up to 4K x 2K.
Ideal for HD security monitoring, multimedia release, video conference, multimedia classrooms, centralized computer management, outdoor advertising, large screen splicing applications, etc.

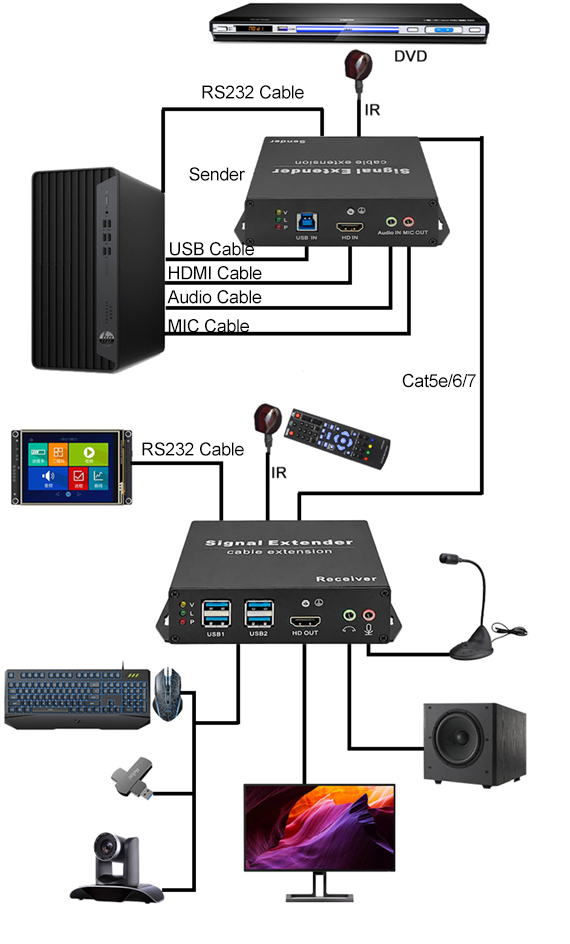

Connection Diagram:
1.Adopting digital transmission without delay, the image is clear and has strong anti-interference ability;
2.Supports multiple resolutions, up to 4K × 2K@30HZ ；
3.Supports HDMI 1.4 and 3D;
4.Supports transparent transmission of EDID and is compatible with different brands of display output devices;
5.Supports USB 3.0 protocol, good compatibility with USB devices, up to 4 USB interfaces, supports USB keyboard and mouse, high-definition camera, mobile phone charging and data copying, mobile storage devices, touch screens, etc., high current design, no disconnection, convenient for users to use;
6.Support bidirectional transmission of audio;
7.Support transmission through Gigabit LAN;
8.Infrared, serial port, and audio functions (optional)
|
Function
|
Input signals
|
Sender：1channel (HDMI, USB, RS232, AUDIO)
Receiver：1 channel (MIC, IR）
|
|
Output signals
|
Sender：1channel (MIC,IR)
Receiver：1channel (HDMI, RS232, AUDIO),
4 channel USB
|
|
Transmission distance
|
Up to 120m (point to point)
|
|
Video
|
I/O
|
HDMI
|
|
HDMI version
|
HDMI 1.4
|
|
HDCP
|
HDCP 1.2
|
|
Video Resolutions
|
Up to 4K×2K@30Hz
|
|
Color depth supported
|
24-bit/ 30-bit deep color/ 36-bit deep color
|
|
Supported audio formats
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
DDC signal
|
5Vp-p(TTL)
|
|
USB
|
Connector
|
Sender：Type-B
Receiver：Type-A
|
|
Protocol
|
USB3.0
|
|
Audio
|
Connector
|
3.5mm audio jack
|
|
RS-232 Serial
|
Connector
|
3-pin phoenix connector
|
|
Type
|
Bi-directional extension
|
|
IR control
|
Connector
|
3.5mm jack
|
|
Signals
|
Infrared remote control signal
|
|
Cabling
|
RJ-45
|
Cat5E/Cat6/7
|
|
General
|
Dimensions (L×W×H)
|
Sender: 131mm×93mm×32mm
Receiver: 131mm×93mm×32mm
|
|
Housing enclosure
|
Aluminum
|
|
Colors available
|
Black
|
|
G.W.
|
1.2 KGS
|
|
Power
|
Power supply
|
DC 12V/1.5A
|
|
Power consumption
|
Sender: 3W
Receiver: 3W
|
|
Operating environment
|
Working Temperature
|
-15℃ ~ 55℃ (5℉ ~ 131℉)
|
|
Storage temperature
|
-40℃ ~ 80℃ (-40℉ ~ 176℉)
|
|
Relative humidity
|
0-95% (No condensation）
|
