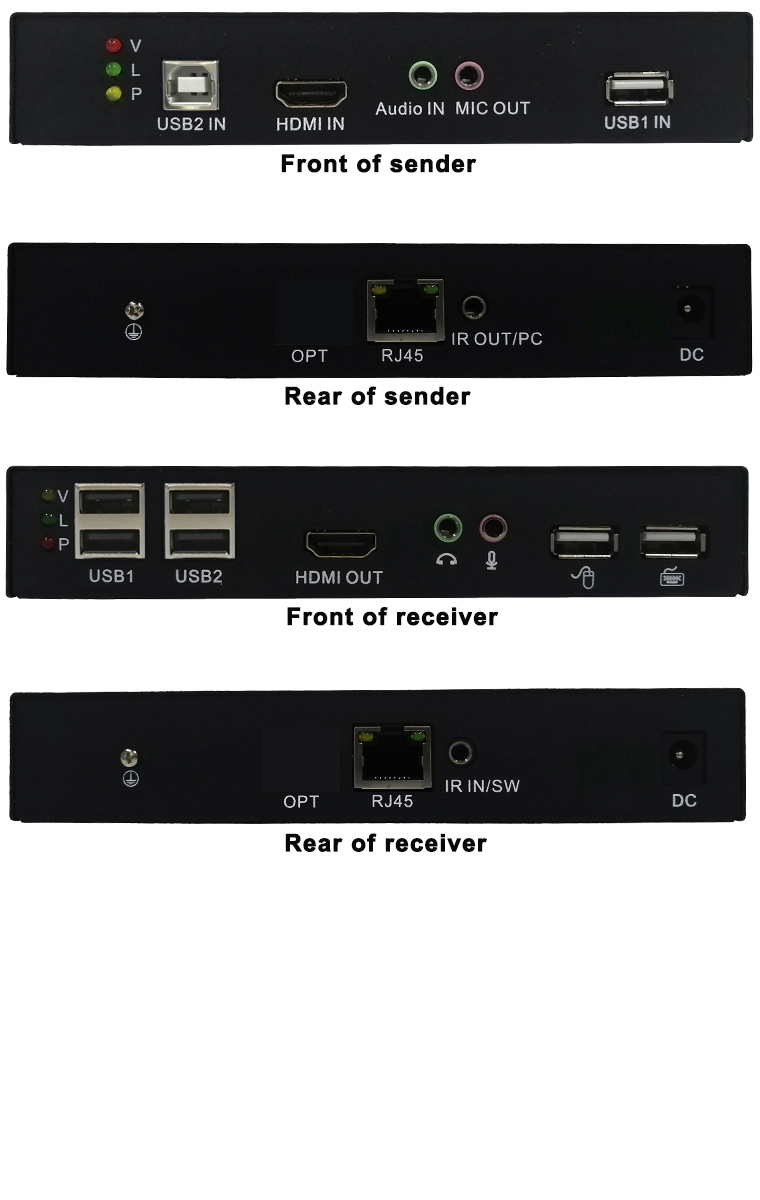

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The IPHEK-120UA extends Full HD 4Kx2K HDMI video,audio signals from Sender to the Receiver via single CAT5e/6 cable at a distance of up to 120m. IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location. (Or) you can turn on/off the source device remotely with included jumper wire and desktop power switch.
Ideal for HD security monitoring, multimedia release system, video conference, multi-media classrooms , PC centralized management system, large screen advertising, screen splicing applications etc.

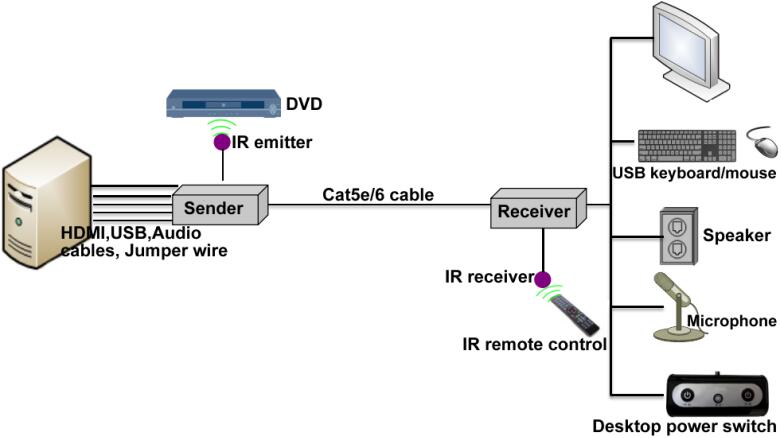

Connection Diagram:
1. Uncompressed digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance with strong anti-interference ability;
2. Supports video resolutions up to 4K×2K@30Hz;
3. HDMI1.4 compliant, 3D video supported;
4. In addition to the 2 independent USB HID Keyboard and Mouse ports, the KVM extender is equipped with 2 USB 2.0 ports for your USB peripherals; It can also provide data access protection: prevent content theft or unauthorized network access;
5. This unit has the capability to extract digital HDMI audio signals from an HDMI compliant source;
6. Ensure compatibility for your remote displays with EDID pass-through;
7. Features 3.5mm jacks on both the Sender and Receiver units. Unique bidirectional audio (Speaker and Mic) extension function independently transmits 2-way audio signal from the Sender (Source) unit to the Receiver (Display) unit, and vice versa
8. IR remote control - Allow source device to recognize remote commands; You can control the HDMI source device at a secondary location. (Or) You can power on your PC remotely from the Receiver location with the included power switch cable.
9. Supports connections via Gigabit LAN Ethernet;
10. USB2.0、IR control/remote power switch、Audio functions optional;
