HDB-100DU(HDMI+USB Keyboard&Mouse+IR) Extend 100m
HDB-100DU(HDMI+USB Keyboard&Mouse+IR) Extend 100m
Share to:

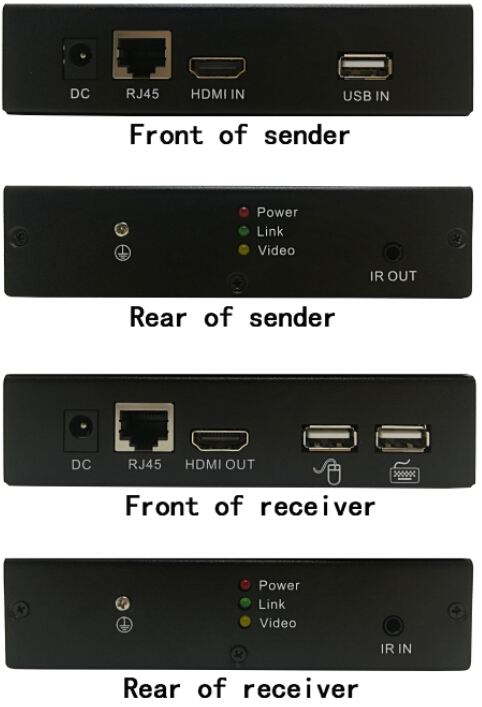

The product is composed of sender(marked with sender)and receiver(marked with receiver),can through one single network cable extend the HDMI video ,USB signalinfrared to the far end. it adopt high-bandwidth lossless technology for digital signal transmission, user can see the real-time local image at remote.

        This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.

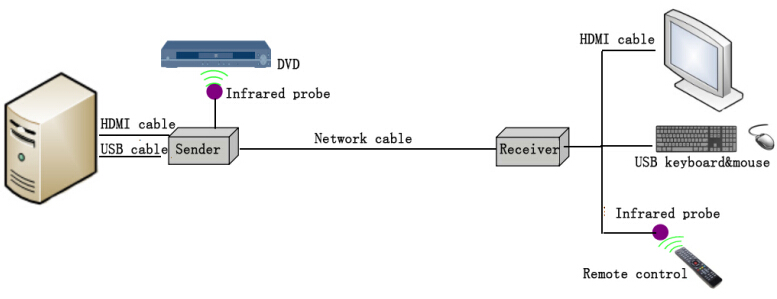

Connection Diagram:

1. Adopt HDBase-T techniquefull digital, uncompressed, no delay transmission
2. Transmission rate can reach10Gbps
3. Maximum 4K×2K resolution

4. Support HDMI1.4 , 3D

5. Support HDCP standard

Compatible with DVI signal
7. IR function (optional)

Function

Number of input signal

Transmitter1CHHDMIUSB

Receiver1CH IR

Number of output signal

Transmitter1CH IR

Receiver1CH HDMI2CH USB

Transmission distance

0-100m

Video transmission performance

Support HDMI version

HDMI1.4

Support HDCP version

HDCP1.2

HDMI resolution

Highest support 4K×2K@30HZ

Support video color format

24 bit / deep 30 bit / deep 36 bit

Support audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maximum Transfer Rate

10Gbps

Input and output TMDS signal

0.5-1.5Vp-p(TTL)

Input and output DDC signal

5Vp-p(TTL)

USB

Protocol

Only support USB keyboard and mouse

Interface

Type A

IR

Remote-control interface

3.5mm audio port

Remote-control interface signal

IR remote control signal

Power supply

Voltage range

InputAC110V-220V50/60HZ

OutputDC9V/1A

Power consumption

Transmitter5W

Receiver5W

Appearance attribute

Size (L×W×H)

Transmitter: 125mm×80mm×30mm

Receiver: 125mm×80mm×30mm

Material

Steel casing

Color

Black

Operating environment

Storage temperature

-40-80℃

Relative humidity

0-95% (No condensation

Working Temperature

-15℃-55℃
