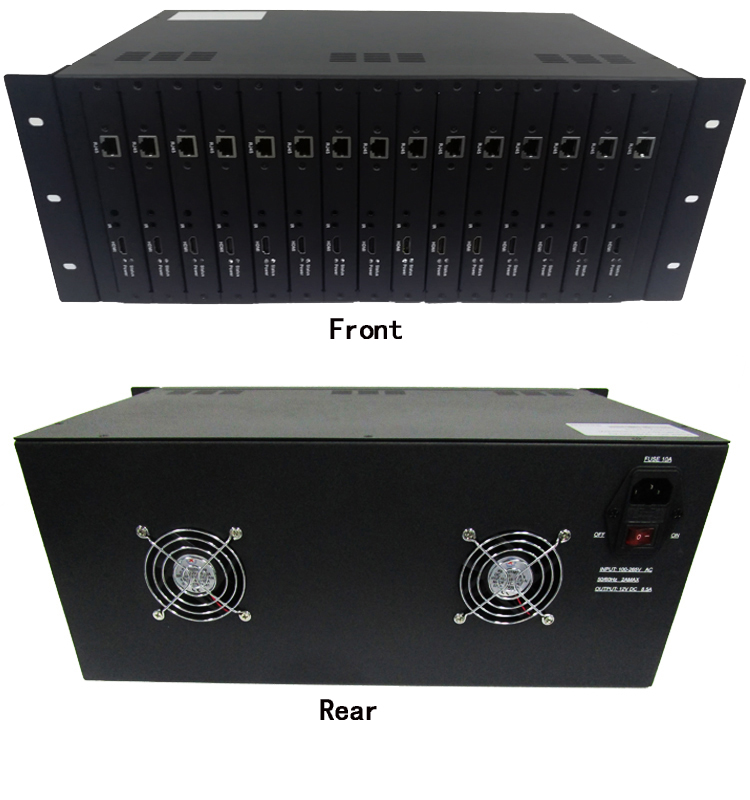

TheHDMI HD video network extender 4U rack facilitates engineering installation and centralized management. 15 transmitter or receiver cards can be inserted to meet the users' requirements. The system has over-temperature, over-voltage and over-current protection devices. Internal voltage compensation technology, extender module can be reliable, accurate voltage supply.
◆ Standard chassis can be installed in the machine room rack for easy management and maintenance.
◆ Modular power supply design, easy maintenance, better shielding, prevent the electromagnetic signal generated by the power supply to interfere with the normal operation of the module group.
◆ The rack can access up to 15 cards at the same time.
◆ AC 220V power supply mode makes the system suitable for multiple working environments.
◆ Support multi-module work at the same time, greatly improving the system's applicability.
◆ For areas with large power fluctuations.
|
Parameter
|
Specification
|
|
Slot
|
15pcs with module
mounting plate
|
|
Structure
|
4U standard rack
|
|
Power input
|
AC 100~265V，frequency：50/60Hz
|
|
Power output
|
DC12V 8.5A(max)
|
|
ripple wave
|
≤102W
|
|
Operating
temperature
|
-10~58℃
|
|
Operating
humidity
|
5%~90%
|
|
Storage
temperature
|
-40~70℃
|
|
Storage humidity
|
5%~90% No
condensation
|
|
Case size (L * W
* H)
|
485mm*292mm*178mm
|
|
Applicable Model
|
HDV-170D
|
