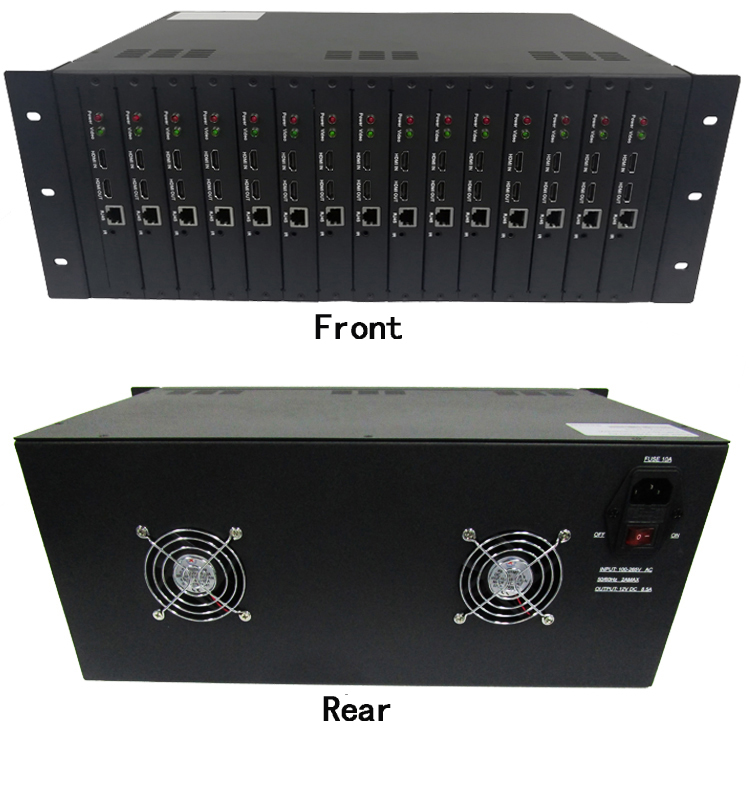

The H.264 HDMI HD video extender 4U rack facilitates engineering installation and centralized management. 15 transmitter or receiver cards can be inserted to meet the users' requirements. The system has over-temperature, over-voltage and over-current protection devices. Internal voltage compensation technology, extender module can be reliable, accurate voltage supply.
◆ Standard chassis can be installed in the machine room rack for easy management and maintenance
◆ Modular power supply design, easy maintenance, better shielding, prevent the electromagnetic signal generated by the power supply to interfere with the normal operation of the module group.
◆ The rack can access up to 15 cards at the same time
◆ AC 220V power supply mode makes the system suitable for multiple working environments;
◆ Support multi-module work at the same time, greatly improving the system's applicability;
◆ For areas with large power fluctuations
|
Parameter
|
Specification
|
|
Slot
|
15pcs with module
mounting plate
|
|
Structure
|
4U standard rack
|
|
Power input
|
AC 100~265V，frequency：50/60Hz
|
|
Power output
|
DC12V 8.5A(max)
|
|
ripple wave
|
≤102W
|
|
Operating
temperature
|
-10~58℃
|
|
Operating
humidity
|
5%~90%
|
|
Storage
temperature
|
-40~70℃
|
|
Storage humidity
|
5%~90% No
condensation
|
|
Case size (L * W
* H)
|
485mm*292mm*178mm
|
|
Applicable Model
|
HDE-200D
|
