HDF-130HU(HDMI+USB+Audio/Power Switch/RS485 Extend 130m)
HDF-130HU(HDMI+USB+Audio/Power Switch/RS485 Extend 130m)
Share to:

The product include one transmitter(marked with sender) and one receiver (marked with receiver), can using a single network cable to extend the HDMI,USB ,audio / remote switch / RS485 signal up to 130 meters.This product supports real-time transmission of HDMI HD video, the maximum resolution is: 1920x1080@60Hz.

Products can be used in military/public security command and control, traffic police traffic management, energy and power supply industries, government departments, medical systems, business shows, multimedia function rooms, utilities and other fields.

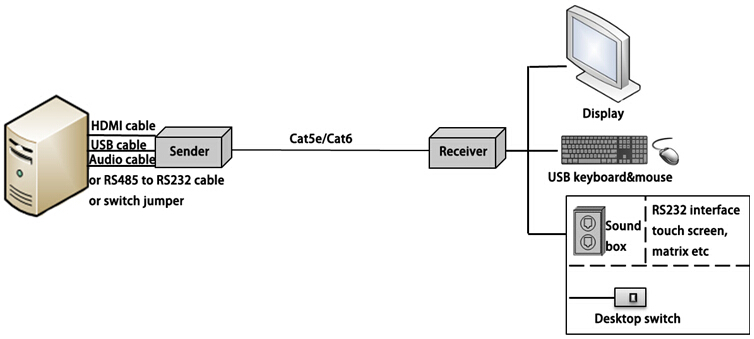

Application Map

1. Resolution up to 1920x1080 @ 60Hz

2. Support HDCP

3. Anti-static, lightning protection, anti-interference ability;

4. Compatible with DVI signal

5.RS485 support conversion to RS232;

6.Audio, RS485, remote switch machine function (three choose one)

Function

Number of input signal

1CH (HDMIUSBAudio/RS485/Remote switch machine)

Number of output signal

1CHHDMIAudio/RS485/Remote switch machine,2CH USB

Transmission distance

0-130 meters

Video transmission performance and interface

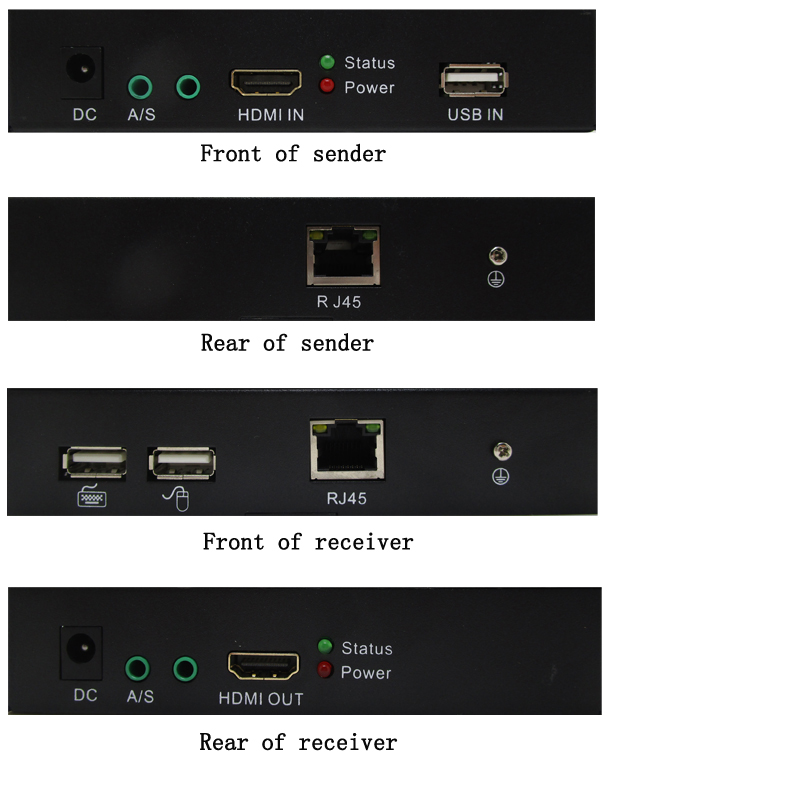

I/O connector

HDMI

HDMI version

HDMI1.3

HDCP version

HDCP1.2

HDMI resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

USB

Protocol

Support USB keyboard&mouse

Audio/RS485/remote switch machine

Interface

3.5mm audio port

Attribute

Size (L×W×H)

Sender: 133mm×93mm×29mm

Receiver: 152mm×93mm×29mm

N.W

0.65Kg

Power supply

Voltage range

InputAC110V-220V50/60HZ

OutputDC9V/1A

Sender consumption

5W

Receiver consumption

5W

Operating environment

Working Temperature

-15℃-55℃

Storage temperature

-40-80℃

Relative humidity

0-95% (No condensation
