HDF-50HUA(HDMI+4 USB2.0+Audio+Mic+RS485 extend 50m)
HDF-50HUA(HDMI+4 USB2.0+Audio+Mic+RS485 extend 50m)
Share to:

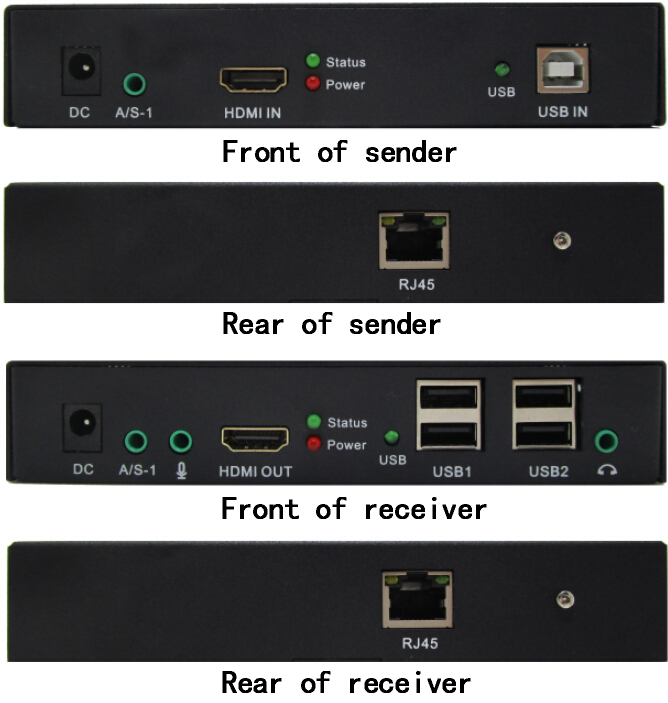

     This product is a pair of complete sets of equipment, one of which is a sender and one is a receiver; the sender is marked with the word "Sender" and the receiver is marked with the word "Receiver". Only use a single network cable to extend the HDMI, USB, audio, microphone, and RS485 interfaces of the signal source up to 50 meters, and the user can view the image in real time at the far end. This product supports real-time transmission of HDMI high-definition audio and video. The maximum resolution is 1920×1080@60Hz.
     Products can be used in military command and control, public security command and control, traffic police traffic management, energy and power supply industry, government departments, medical systems, commercial displays, multimedia functions, utilities and other fields.

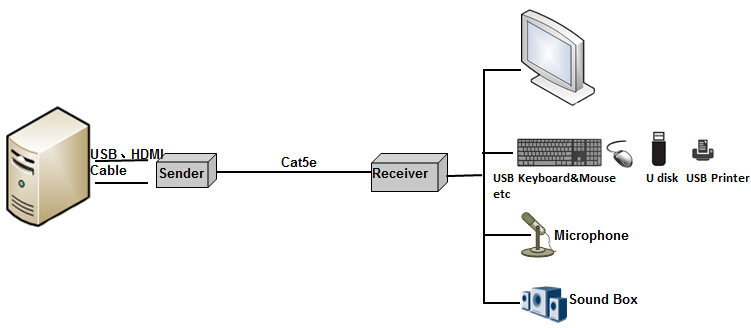

Application Map


1. Resolution up to 1920x1080 @ 60Hz;
2. Support HDCP;
3. Support USB2.0 protocol;
4. Anti-static, lightning protection, anti-interference ability;
5. Compatible with DVI signal;
6. RS485  function (optional).

Function

Number of input signal

1CH HDMIUSBRS485

Number of output signal

1CH HDMI, Audio, Microphone, RS485, USBx4

Transmission distance

0-50 meters

Video transmission performance and interface

I/O connector

HDMI

HDMI version

HDMI1.3

HDCP

HDCP1.2

HDMI resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

USB

Protocol

Support USB2.0

RS485/Audio, microphone

Interface

3.5mm Audio socket

Attribute

Size (L×W×H)

Sender: 151mm×93mm×28mm

Receiver: 151mm×93mm×28mm

G.W

1.4Kg

The shell

Iron

Color

Black

Power supply

Voltage range

InputAC110V-220V50/60HZ

OutputDC9V-12V/1A

Sender consumption

5W

Receiver consumption

5W

Operating environment

Working Temperature

-15℃-55℃

Storage temperature

-40-80℃

Relative humidity

0-95% (No condensation
