HDB-100HU4(HDMI+USB+AUDIO+MIC+Remote switch Extender 100m)
HDB-100HU4(HDMI+USB+AUDIO+MIC+Remote switch Extender 100m)
Share to:

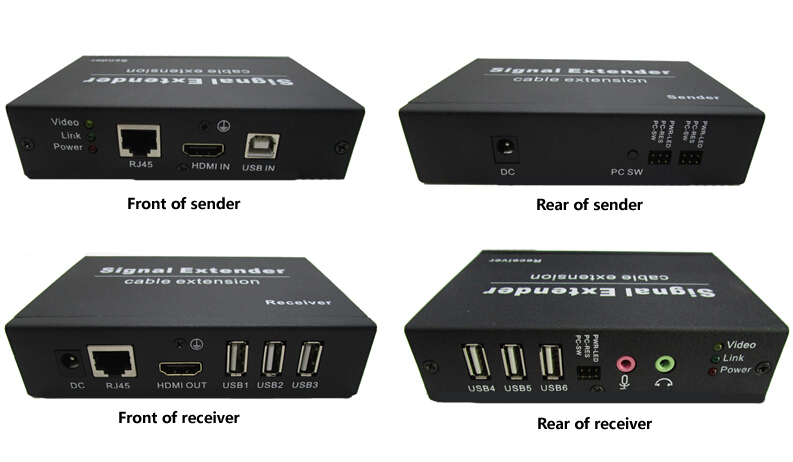

The product is composed of sender(marked with sender)and receiver(marked with receiver),can extend the HDMI video signal, Stereo audio, Mic, USB, remote switch, infrared to the far end through one single network cable.The maximum distance can reach 100m. it adopt high-bandwidth lossless technology for digital signal transmission, user can remote on off and control the computer, copy data, online games, online chat , listen to music, and do other entertainment activities.Also can put the host together in a safe place , convenient for maintenance and management, ensure the safety of the equipment and reduce noisy and fever.

   This product can be widely used in the field of computer and monitoring, large-screen advertising, education, splicing system, bank stock system etc.

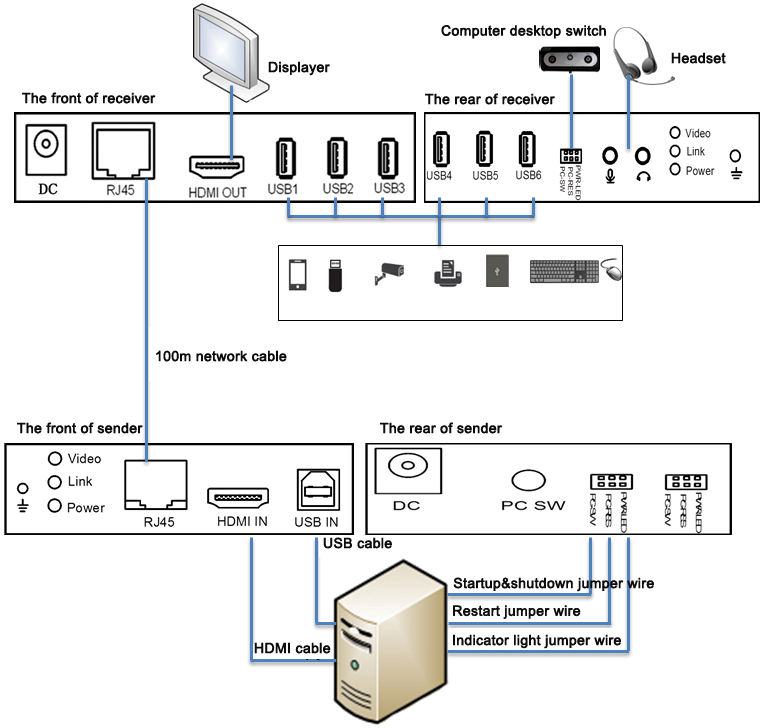

Connection diagram:

Product Features

1.Adopt HDBase-T technique,full digital, uncompressed, no delay transmission
2.Transmission rate can reach10Gbps
3.Support 1080P,2560×1080@60HZ,Maximum can reach 4K×2K

4.Support HDMI1.4, 3D

5.Well compatibility,support all kinds brand of displayer and video card.

6.Support USB2.0 protocol

7.Support stereo audio and mic

8.Support remote on/off、restart PC, with led indicator light

9.6 USB port, can connect USB keyboard&mouse,HD camera,mobile HDD,mobile charge and copy data,large current design, not dropped, more convenient for use

10.Built-in strong anti-interference circuit design,with reliable and steady performance

Product specification

Function

Input

Sender1chHDMIUSBStartup & Shutdownrestartindicator light

Output

Receiver:1 chHDMIAUDIOMICStartup & Shutdownrestartindicator light),6 USB port

Transmission distance

0-100m

Video interface and performance

Sender video interface

HDMI

Receiver video interface

HDMI

HDMI protocol

HDMI1.4

Video color format support

24bit/deep30bit/deep36bit

Audio format support

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Video resolution

800X600@60HZ;1024X768@60HZ;

1280X720@60H;1280X800@60HZ;

1280X1024@60HZ;1360X768@60HZ;

1440X900@60HZ;1600X1200@60HZ;

1680X1050@60HZ;1920X1080@60HZ

1920X1200@60HZ; 2560X1080@60HZ;

4KX2K

Input/output TMDS signal

0.5-1.5Vp-p(TTL)

Input/output DDC signal

5Vp-p(TTL)

Audio interface and performance

Interface type

Sender USB inputreceiver 3.5mm Stereo audio socket

Bandwidth

10HZ~20KHZ

USB interface

Interface type

Sender B type female port

Receiver A type female port

Protocol

Support USB2.0

Transmission interface

RJ45

Cat5E/Cat6

Power supply

Adaptable voltage

InputAC100V-240V50/60HZ

OutputDC9V/2A

Power consumption

Sender6W

Receiver9W

 Operating environment

Working Temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (No condensation
