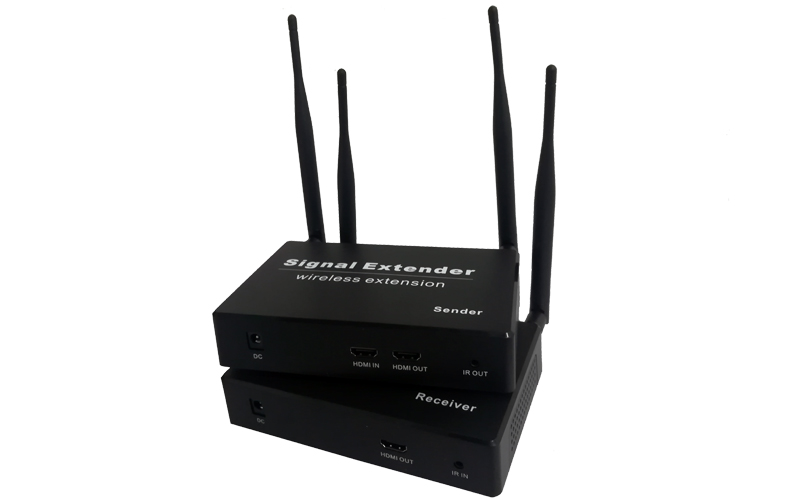

WH-30D (HDMI wireless extension of 30 meters)
WH-30D (HDMI wireless extension of 30 meters)
Share to:

Product presentation

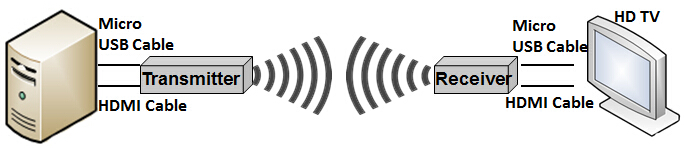

It consists of transmitter and receiver, the perfect realization of the high-definition HDMI audio signals wirelessly to a HDTV display, transmission distance up to 30 meters


Item features
1. Mate by a key without any setting. Without reset for the device which has been matched in pairs, with power supply it works
2. uncompressed, no transmission delay with resolution 1920×1080@60HZ
3. It make the room clean and convenient for wireless configuration from the wiring
4. Plug and play, no need to install any software and drivers
5. Strong anti-interference, interfering with many WIFI equipment
6. Widely used for various Blu-ray, HD player, etc

Technical Specifications

port

HDMI type A &USB Micro B

video resolution

1080P、1080I、720P、576P、480P etc

standard

WHD1.1

bandwidth

7Gbps

Intermediate frequency

60GHz

transmission distance

Can’t through walls and human, distance up to 30m under open linear conditions

outside dimension

84.5mm×49mm×25.5mm

Transmitting/receiving antenna system

Internal

Average
power consumption

Transmitter: max 2.5W

Receiver: max 2.5W

power supply

DC5V/1A

N.W

160g

Operating temperature

0~40℃
