WH-500D (HDMI wireless extension of 500 meters)
WH-500D (HDMI wireless extension of 500 meters)
Share to:

     This product consists of a transmitter and a receiver, which perfectly realizes wireless transmission of high-definition HDMI audio and video to high-definition display output devices, and can also transmit IR infrared signals at the same time. It can remotely control infrared devices such as DVD, set-top boxes with a transmission distance of 500 Meter.

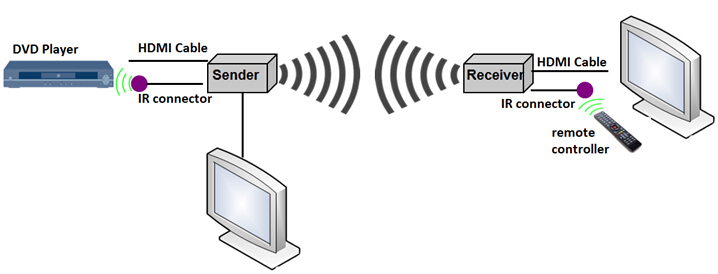

One to one installation diagram

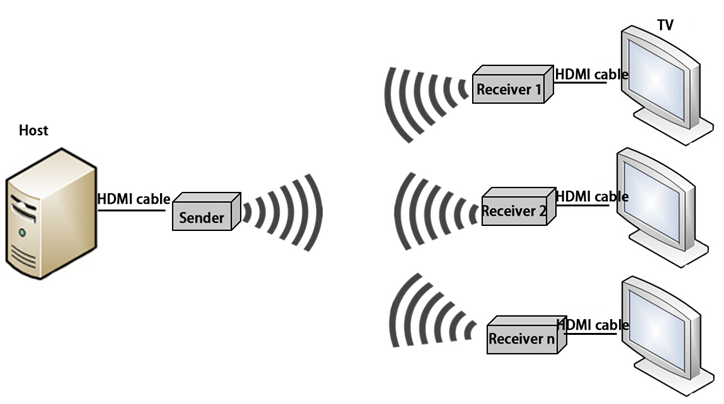

One to more installation diagram



1.Support 1080P HD resolution
2.Support HDCP
3.The wireless configuration made the room to be clean and convenient from the wiring.
4.The Transmitter with HDMI loop-through.
5.Support one sender with many receivers.
6.Strong anti-interference, No interference with other WIFI equipment.
7.Strong penetration, easy crossing obstacles.
8.IR Function(optional)

Function

Input signal

Senderone CH HDMI

Receiverone CH IR

Output signal

Senderone CH HDMIIR

Receiverone CH HDMI

Transmission distance

Open range transmission0-500 Meter

Video transmission performance and interface part

Video input/output interface

HDMI

Support HDMI version

HDMI1.3

Support HDCP version

HDCP1.2

HDMI Resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Support video color format

24 bits/dark 30 bits/dark 36 bits

Support audio format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input and output TMDS signal

0.5-1.5Vp-p(TTL)

Input and output DDC signal

5Vp-p(TTL)

Infrared remote control performance and interface

Remote control interface

3.5mm audio

Remote interface signal

Infrared control signal

Wireless

Frequency

5.8GHZ

Sending/Receiver antenna

Outer

Property

Size(lengh*width*height)

Sender: 165 mm×105 mm×30 mm

Receiver: 165 mm×105 mm×30 mm

Case

Plastic

Color

Black

Power Supply

Adaptive voltage range

DC9V/2A

Sender consumption

7W

Receiver consumption

6W

Operating environment

Working Temperature

-15-55

Storage temperature

-40-80

Relative humidity

0-95% (No condensation)
