UVON-7HUAS(HDMI+USB2.0+Network+Two Way Audio+Two Way RS232+IR)High Speed Fiber Extend 20KM
UVON-7HUAS(HDMI+USB2.0+Network+Two Way Audio+Two Way RS232+IR)High Speed Fiber Extend 20KM

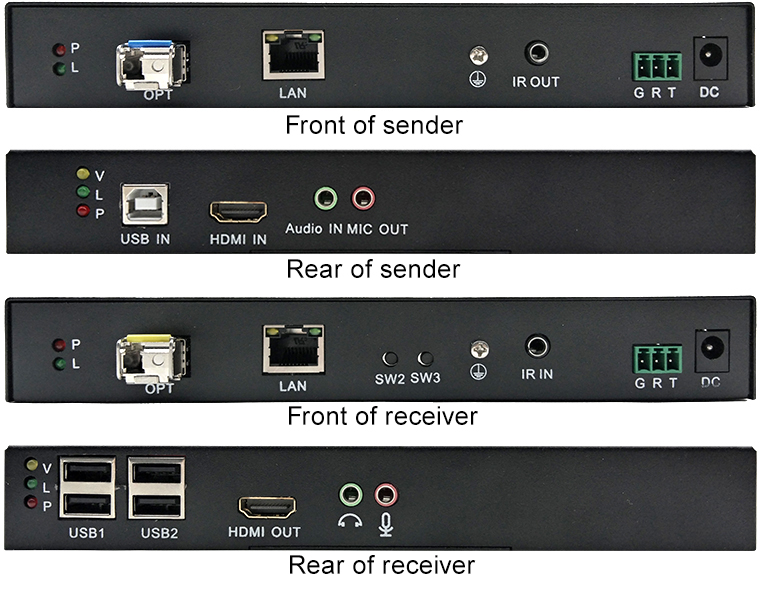

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).

It can extends UHD 4K HDMI signals,Independent audio, microphone, USB2.0,network signal to the remote end through single SM/MM fiber cable at a distance of up to 20km. Moreover, it supports RS-232 & IR control. The IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location. While RS-232 control lets you connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.

Ideal for HD monitoring,multimedia release, video conference, multimedia classrooms, centralized computer management, outdoor advertising, large screen splicing applications,etc.

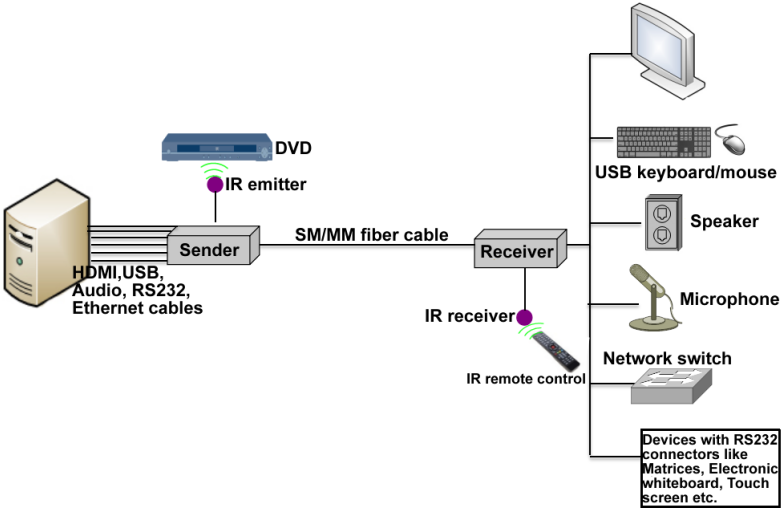

Connection Diagram:

1. Digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance with strong anti-interference ability;

2. Supports video resolutions up to 4K×2K@30Hz;

3. HDMI1.4 compliant, 3D video supported;

4. Able to read the EDID information, ensuring compatibility for your remote displays and being able to lock screen;

5. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcams,mobile phone charging and data transferring, portable storage devices, touch screens, etc. The high-current design guarantees perfect stability and eliminates intermittent signal loss;

6. Supports connections via Gigabit LAN Ethernet;

7. Supports 100Base-TX, 100Base-FX protocols, while offering auto-negotiation for 10/100Mbps speed adaptation;

8. Features 3.5mm jacks on both the Sender and Receiver units. Unique bidirectional audio (Speaker and Mic) extension function independently transmits 2-way audio signal from the Sender (Source) unit to the Receiver (Display) unit, and vice versa;

9. IR remote control - Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location;

10. Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control;

11. Audio, IR , RS232 control functions optional;

12. Plug and play installation, no software or driver needed.

Function

Input signals

Sender:1channel (HDMI,USB,RS232,AUDIO,LAN)

Receiver:1channel (MIC, IR)

Output signals

Sender:1channel (MIC, IR)

Receiver:1channel (HDMI, RS232, AUDIO, LAN), 4channel USB

Transmission distance

SM fiber cable:Up to 20km

MM fiber cable:Up to 300m/500m

(depends on your cable’s quality)

Video

I/O

HDMI

HDMI version

HDMI1.4

HDCP version

HDCP1.2

Video resolutions

Up to 3840×2160@30Hz

Color depth supported

24-bit/ 30-bit deep color/ 36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS signals

0.5-1.5Vp-p(TTL)

DDC signals

5Vp-p(TTL)

USB

Connectors

Sender:Type-B

Receiver: Type-A

Protocol

USB2.0

Audio

Connector

3.5mm stereo audio jack

RS232

Connector

Connecting terminal

Type

Bi-directional

IR control

Connector

3.5mm audio jack

Signals

IR remote control signals

Cabling

Type

SM/MM fiber cable,LC connector

Wavelength

1310nm/1550nm

LAN

Protocol

IEEE802.3 10Base-T,IEEE802.3u 100Base-TX,100Base-FX

Transmission mode

Supports both full-duplex/half-duplex modes, featuring an auto-negation capability

Data transfer rate

10/100Mbps

General

Dimensions(L x W x H)

Sender:  180.5mm×94.5mm×28mm

Receiver:  180.5mm×94.5mm×28mm

Housing enclosure

Iron

Colors available

Black

Power

Power supply

DC 12V/1.5-2A

Power consumption

Sender: 4W

Receiver: 4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Relative humidity

0-95% (no condensation)
