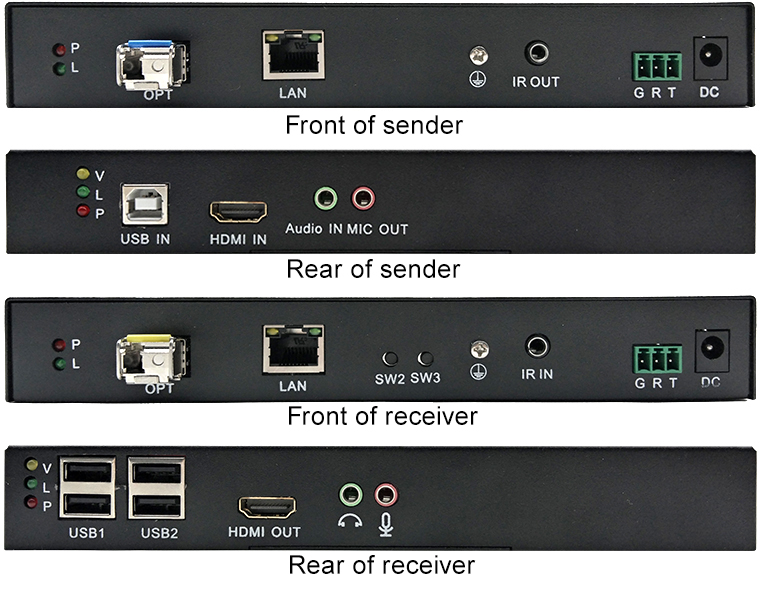

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
It can extends UHD 4K HDMI signals,Independent audio, microphone, USB2.0,network signal to the remote end through single SM/MM fiber cable at a distance of up to 20km. Moreover, it supports RS-232 & IR control. The IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location. While RS-232 control lets you connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for HD monitoring,multimedia release, video conference, multimedia classrooms, centralized computer management, outdoor advertising, large screen splicing applications,etc.

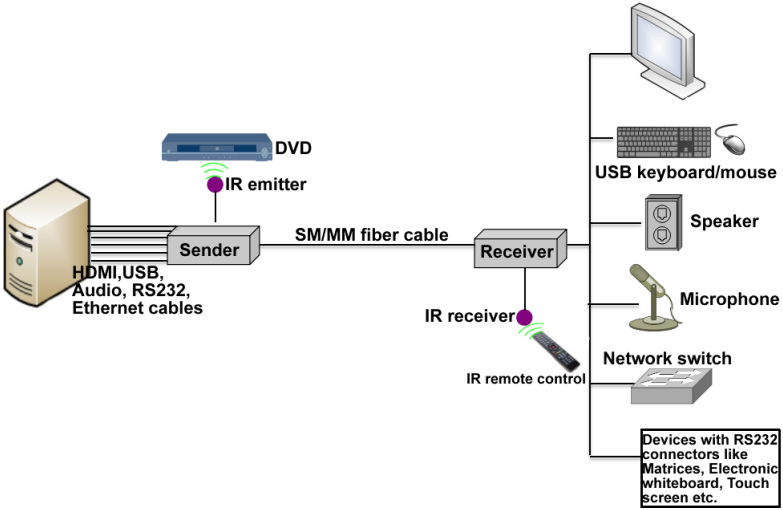

Connection Diagram:
1. Digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance with strong anti-interference ability;
2. Supports video resolutions up to 4K×2K@30Hz;
3. HDMI1.4 compliant, 3D video supported;
4. Able to read the EDID information, ensuring compatibility for your remote displays and being able to lock screen;
5. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcams,mobile phone charging and data transferring, portable storage devices, touch screens, etc. The high-current design guarantees perfect stability and eliminates intermittent signal loss;
6. Supports connections via Gigabit LAN Ethernet;
7. Supports 100Base-TX, 100Base-FX protocols, while offering auto-negotiation for 10/100Mbps speed adaptation;
8. Features 3.5mm jacks on both the Sender and Receiver units. Unique bidirectional audio (Speaker and Mic) extension function independently transmits 2-way audio signal from the Sender (Source) unit to the Receiver (Display) unit, and vice versa;
9. IR remote control - Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location;
10. Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control;
11. Audio, IR , RS232 control functions optional;
12. Plug and play installation, no software or driver needed.
