This kit comes as a pair, with one Sender(marked with Sender) and one Receiver(marked with Receiver).
The HDFA-150(EP) HDMI extender kit extends HDMI signals over one cost effective Cat5e/6/7 cable, while maintaining signal strength and superior audio/video quality. It supports up to 1920×1200@60Hz resolution and extends transmission distances up to 150m with low latency. The IR extension enables you to operate your display and an IR-enabled source device, such as a Blu-ray player or TV Set top box, from the remote location. For added versatility the kit features Power Over Cable and only requires a single power adapter that can be connected to either the Transmitter or Receiver.
Ideal for HD monitoring , video conference, energy and power supply industries, government departments, commercial displays, public utilities applications, etc.

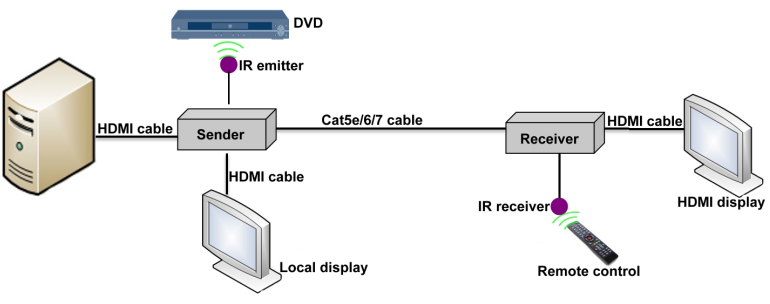

Connection diagram:
1. Digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance with strong anti-interference ability;
2. Extends HDMI signals up to 150m via single Cat5e/6/7 cable;
3. Supports video resolutions up to 1920 x 1200P@60Hz;
4. Additional HDMI output on the Transmitter to connect to a local display for monitoring;
5. Anti-static, lightning protection, and strong anti-interference properties;
6. Compatible with DVI signals when using an HDMI-to-DVI adapter;
7. IR remote control - Allows source device to recognize remote commands; You can control the HDMI source device at a secondary location;
8. Power Over Cable (PoC) - Bi-directional PoC allows one power adapter to power both the TX & RX units. Connect the power adapter on either the TX or RX;
9. Able to lock EDID signals;
10. IR control, PoC , EDID functions optional;
11. Premium and durable aluminum housing improves heat dissipation and ensures system stability during long hours of operation;
12. Integrated mounting bracket for easy placement;
13. Plug and play installation, no software or driver needed.
