HDF-120( HDMI Extend 120m)
HDF-120( HDMI Extend 120m)
Share to:

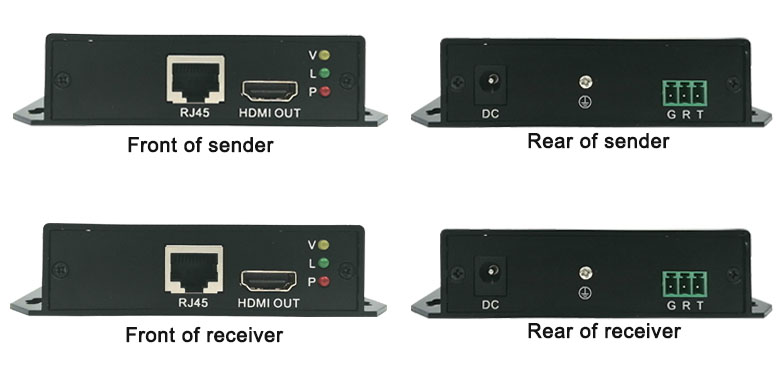

The product include one transmitter(marked with senderand one receiver (marked with receiver),can extend the HDMI video to the far end 120m through one single network cable. it supports HDMI high-definition audio and video real-time transmission,user can see the real-time local image at remote, the maximum resolution can reach:1920x1080 @ 60Hz.

 It can be widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

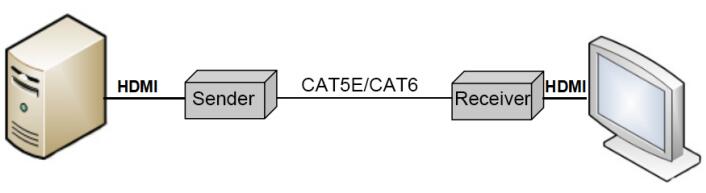

Application Map

1. Digital video transmission with zero latency, the image is clear and the anti-interference ability is strong;

2. Resolution up to 1920×1080@60Hz;

3. Support HDCP;

4. Anti-static, lightning protection, strong anti-interference ability;

5. Compatible with DVI signal.

Function

Input signals

Sender1channel HDMI

Output signals

Receiver1channel HDMI

Transmission distance

0~120m

Video

I/O

HDMI

HDMI version

HDMI1.3

HDCP version

HDCP1.2

Video resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Color depth

24-bit/30-bit deep color/36-bit deep color

Audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

Signals

Infrared control signals

Network port

RJ-45

Cat5E/Cat6

General

Dimensions(L x W x H)

Sender:  120mm x 106mm x 30mm

Receiver:  120mm x 106mm x 30mm

Housing enclosure

Aluminum

Colors available

Black

Power supply

Voltage

Input: AC110V-220V, 50/60HZ

Output: DC9-12V/1A

Power consumption of Sender

4W

Power consumption of Receiver

4W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (non condensation
