This kit comes with one Sender unit (marked with Sender) and multiple Receiver units (marked with Receiver).
The HDFH 1x 2/3/4 HDMI fiber Extender/Splitter allows users to split an incoming HD 1080P HDMI signal to up to 4 displays. With the use of the included Receivers, that signal can be extended up to 20KM over single fiber cable (per Receiver) with ease.
Ideal for HD monitoring, multimedia release, government departments, commercial displays, multi-purpose halls, public utilities applications, etc.

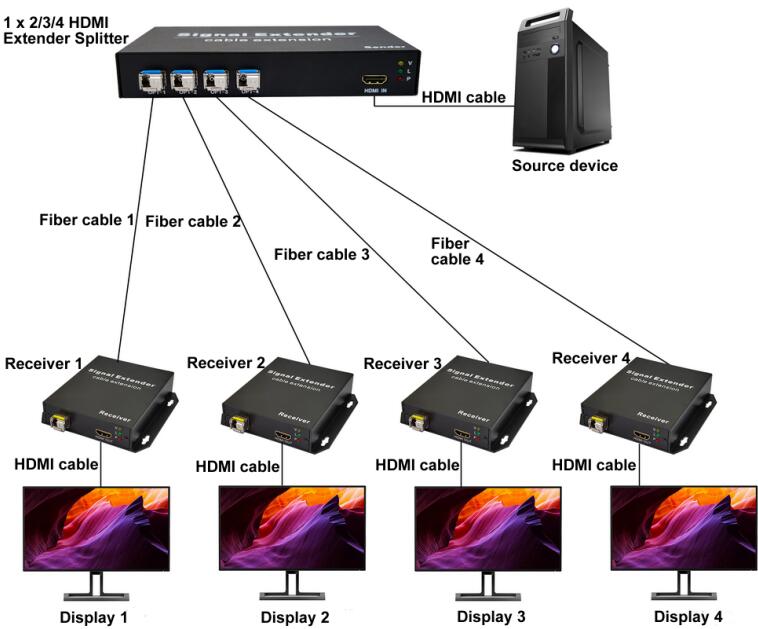

Connection diagram:
1. Digital video transmission allows for near-zero signal loss;
2. Extend and distribute an HDMI source to up to 4 HDMI displays simultaneously;
3. Extends HDMI signals up to 20km over single-mode fiber cables or up to 2km over multi-mode fiber cables, while maintaining signal strength and superior audio/video quality;
4. Supports video resolutions up to 1920 x 1080P@60Hz;
5. HDCP1.2 compliant;
6. Compatible with DVI signal when using an HDMI-to-DVI adapter;
7. Static and lightning protection with strong anti-interference capabilities;
8. High quality durable metal housing with ventilation panels provides excellent heat dissipation to ensure reliable performance and system stability during long hours of operation;
9. Plug-and-play installation, no software or driver needed.
