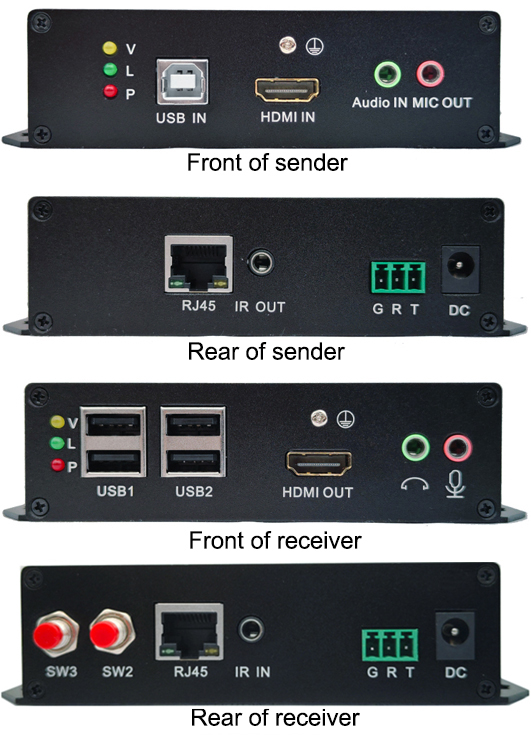

This product is a pair of complete sets of equipment, one of which is a sender and one is a receiver; the sender is marked with the word "Sender" and the receiver is marked with the word "Receiver".It can extend HDMI video, independent audio, microphone, USB to the remote end through a single network cable, and can also transmit RS232 serial port signals for long-distance transmission with touch screen, pan tilt zoom, electronic whiteboard, etc., IR infrared signal Infrared remote control of devices such as DVDs, set-top boxes, etc. The farthest transmission distance is 100meters, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.
Products can be used in security monitoring, multimedia information publishing, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

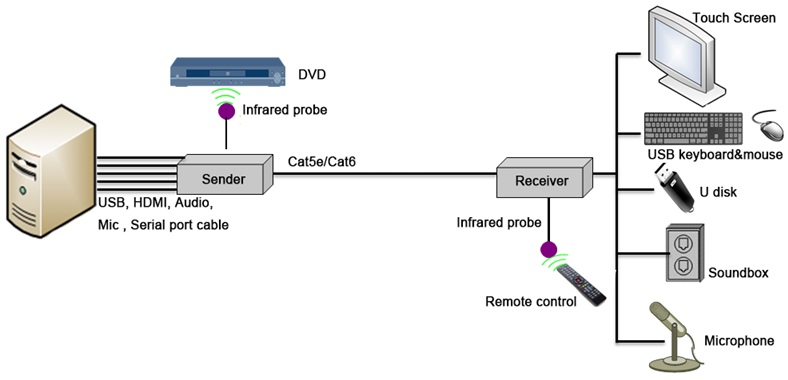

Connection Diagram:
1. Adopting digital transmission without delay, the image is clear and has strong anti-interference ability;
2. Supports multiple resolutions, up to 4K × 2K;
3. Supports reading EDID, compatible with different brands of display devices, and able to lock the screen;
4. Supports USB 2.0 protocol, with good compatibility with USB devices, up to 4 USB interfaces, supporting USB keyboard and mouse, high-definition camera, mobile phone charging and data copying, mobile storage devices, touch screens, etc., high current design, no disconnection, convenient for users to use;
5. Support bidirectional transmission of audio;
6. Support bidirectional transmission of serial ports;
7. Support transmission through Gigabit LAN;
8. Connect to a gigabit switch, supporting one to many transmission;
9. Infrared, serial port, and audio functions (optional).
