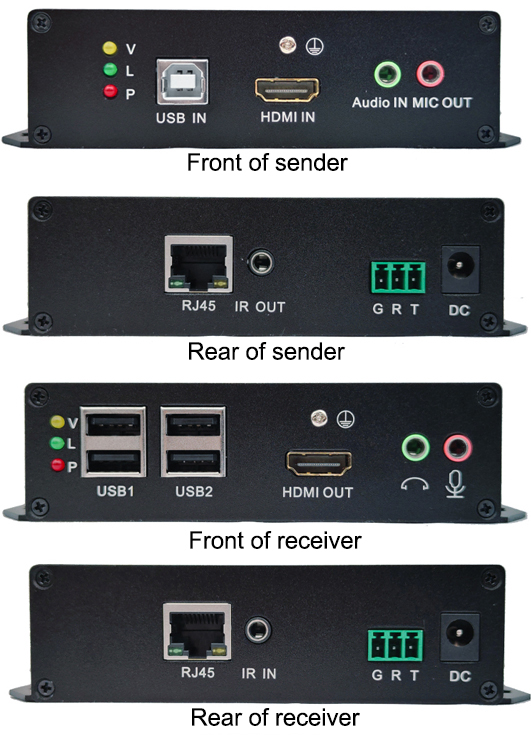

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).
The IPHF-100UAS HDMI KVM extender extends UHD 4Kx2K HDMI signals from Sender to the Receiver via single Cat5e/6/7 cable at a distance of up to 100m. It also supports RS-232 & IR control. RS-232 control lets you connect a serial I/O device at your display location - an ideal solution for adding a serial touch screen interface to your remote display. While the IR extension enables you to control an IR-enabled source device, such as a Blu-ray player or TV Set-top box, from the remote location.
Ideal for HD security monitoring, multimedia release, video conference, multimedia classrooms, centralized computer management, outdoor advertising, educational facilities, large screen splicing applications, etc.
Connection Diagram:
1. Digital video transmission with zero latency, and 100% true picture at destination even over long distance with strong anti-interference ability;
2. Extends HDMI signals up to 100m via single Cat5e/6/7 cable;
3. Supports video resolutions up to 4Kx2K;
4. Ensure compatibility for your remote displays with EDID pass-through;
5. The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcams, mobile phone charging and data transferring, portable storage devices, touch screens, etc. The high-current design provides perfect stability, eliminating intermittent signal loss;
6. Features 3.5mm jacks on both the Sender and Receiver for individual 2 channel audio support;
7. Supports connections via Gigabit LAN Ethernet;
8. IR control allows your HDMI source device to recognize remote commands, you can control the HDMI source device from the remote location;
9. Bidirectional RS–232 Extension — Serial interface data flows in both directions, allowing data transmission and device control;
10. IR control, RS-232 serial, audio functions optional;
11. High quality metal housing improves heat dissipation and ensure system stability during long hours of operation;
12. Integrated mounting brackets for easy surface/wall placement;
13. Plug and play installation, no software or driver needed.
