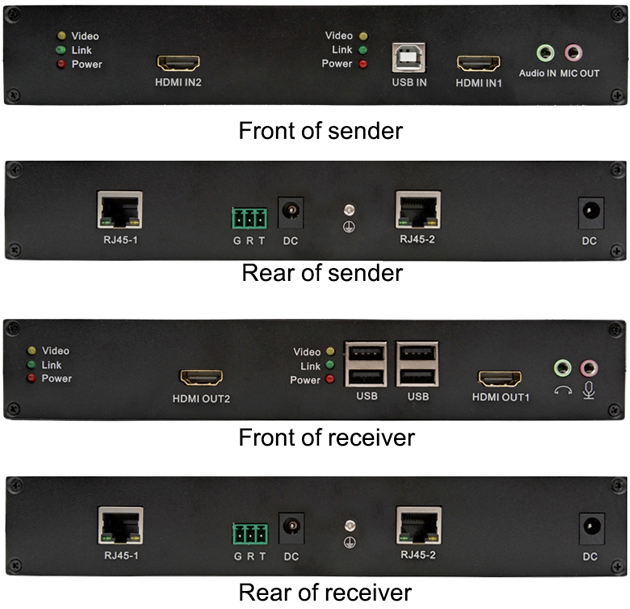

This kit comes as a pair, with one Sender unit (marked with "Sender") and one Receiver unit (marked with "Receiver").
The IPHE2A-120U(AS)-(2P) HDMI KVM extender kit allows you to transmit 2-channel 4K video source to your remote HDMI displays at a distance of up to 120m away via two Cat5e/6 cables. Audio de-embedding allows 2 channel audio to be passed to an amp through 3.5mm stereo audio ports. It features a built-in 4-port USB hub that also lets you connect four remote USB peripheral devices at your display location. Additionally, RS232 control allows you to connect a serial I/O device at your display - an ideal solution for adding a serial touch screen interface to your remote display.
Ideal for control centers, HD security monitoring, multimedia releases, video conferences, multimedia classrooms, centralized computer management, outdoor advertising, educational facilities, large screen splicing applications, etc.

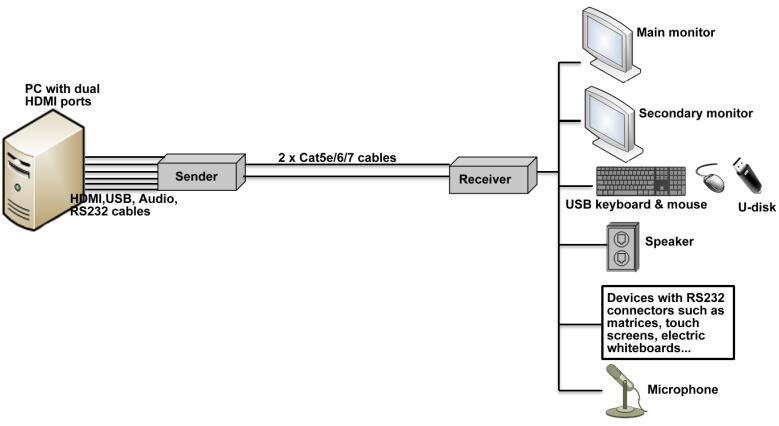

Connection Diagram:
1.Digital video transmission allows for near-zero signal loss, and 100% true picture at destination even over long distance with strong anti-interference ability;
2.Extends dual HDMI signals up to 120m via two Cat5e/6 cables;
3.Extends your Monitor to work twice as fast. With this extender, you will able to plug 2 HDMI Monitor Displays into your Laptop or Desktop to get an Extended or Duplicate Display;
4.It will allow you to display 3 separate screens including your laptop/PC screen;
5.Supports resolutions up to 4K×2K@30Hz;
6.HDMI1.4 full compliant, 3D video supported;
7.Ensure compatibility for your remote displays with EDID pass-through;
8.The built-in 4-port USB 2.0 hub lets you remotely connect, access or control up to four USB devices located at your remote display - great for USB keyboards and mice, HD webcam, charging and data transferring of your mobile phones, portable storage devices, touch screen, etc. High-current design provides perfect stability, eliminates intermittent signal loss or disconnected HDMI cables;
9.Features 3.5mm jacks (optional) on both the Sender and Receiver for individual 2 channel audio support;
10.Bidirectional RS–232 Extension (optional) — Serial interface data flows in both directions, allowing data transmission and device control;
11.Dual DC power input/output ports on each Sender/Receiver for backup power to ensure stability;
12.Durable aluminum alloy housing improves heat dissipation and ensure system stability during long hours of operation;
13.Plug and play installation, no software or driver needed.
|
Function
|
Input signals
|
Sender: 1channel(USB, RS232, Audio), 2channel HDMI
Receiver：1channel MIC
|
|
Output signals
|
Sender：1channel MIC
Receiver：1channel (AUDIO, RS232), 2channel HDMI, 4channel USB
|
|
Transmission
|
0-120m
|
|
Video
|
I/O
|
HDMI
|
|
HDMI Version
|
HDMI1.4
|
|
HDCP Version
|
HDCP1.2
|
|
Video resolutions
|
Up to 4K×2K@30Hz
|
|
Color depth
|
24-bit/30-bit deep color/36-bit deep color
|
|
Supported audio formats
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
TMDS signal
|
0.5-1.5Vp-p(TTL)
|
|
DDC signal
|
5Vp-p(TTL)
|
|
USB
|
Connector
|
Sender：Type-B
Receiver：Type-A
|
|
Protocol
|
USB2.0
|
|
Audio
|
Connector
|
3.5mm stereo audio jack
|
|
RS232 control
|
Connector
|
3-pin phoenix connector
|
|
Type
|
Bi-directional
|
|
Cabling
|
RJ-45
|
Cat5E/6/7
|
|
General
|
Dimensions(L x W x H)
|
Sender:224mm×93.5mm×36mm
Receiver:224mm×93.5mm×36mm
|
|
Housing enclosure
|
Aluminum
|
|
Colors available
|
Black
|
|
Power
|
Power supply
|
DC 12V/1.5-2A
|
|
Power consumption
|
Sender: 6W
Receiver: 6W
|
|
Operating environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95%RH (no-condensation）
|
