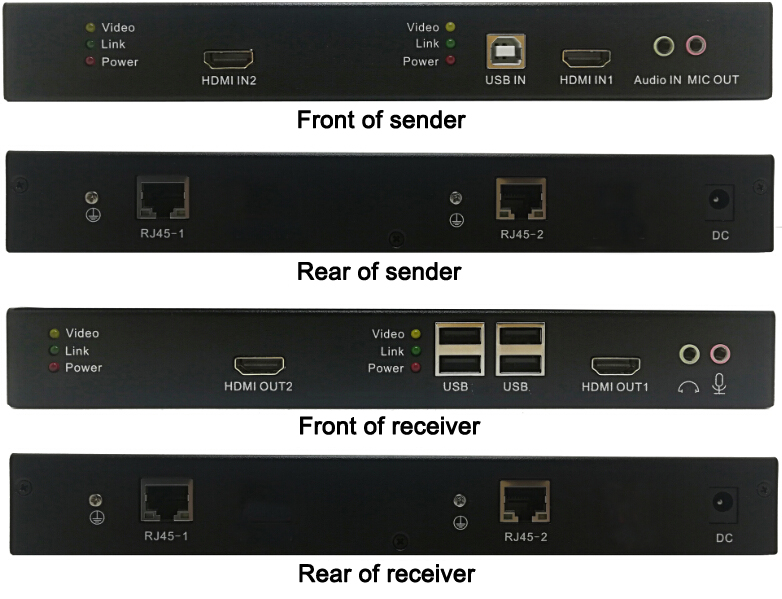

The kit comes as a pair, with one sender unit and one receiver unit.
This HDMI extender kit lets you transmit 2 channel 4K video source to your remote HDMI displays at a distance of up to 120m away via Two Ethernet cables. Audio de-embedding allows 2Channel audio to be passed to an amp through 3.5mm Stereo Audio ports. The extender features a built-in 4-port USB hub that also lets you connect four remote USB peripheral devices at your display location.
It can be widely used in HD security monitoring , multimedia release systems, video conferencing, multimedia classroom,centralized computer control system, big screen advertising, education systems, large screen splicing system etc.

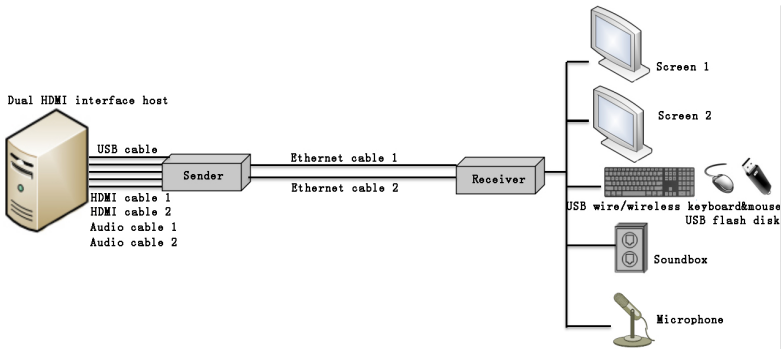

Connection Diagram:
1. Digital video transmission with zero latency;
2. It supports resolution up to 4K×2K@30HZ;
3. HDMI1.4 full compliance, 3D video supported;
4. EDID pass-through, compatible with different brands of display devices
5. Support USB2.0 protocol, with up to 4 USB interfaces, suitable for USB keyboards, mice, HD web cameras, charging and data transferring of your mobile phones, portable storage devices, touch screen, etc. High-current design provides perfect stability, eliminates intermittent signal loss or disconnected HDMI cables.
6. 2-way audio supported.(optional )
