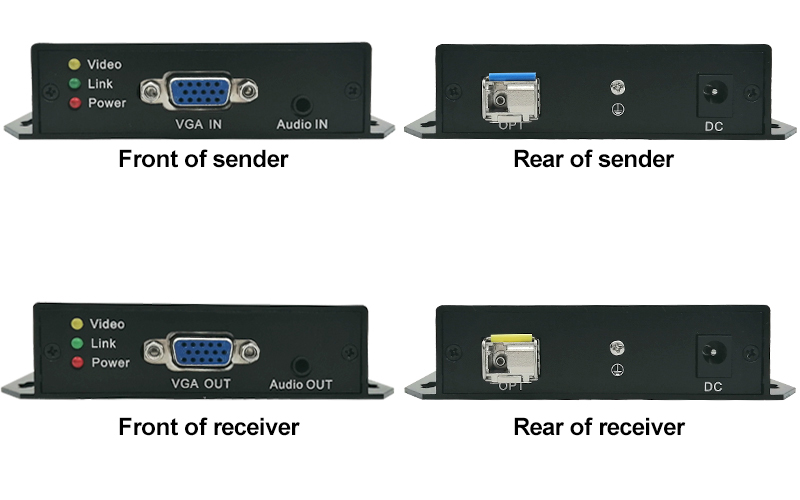

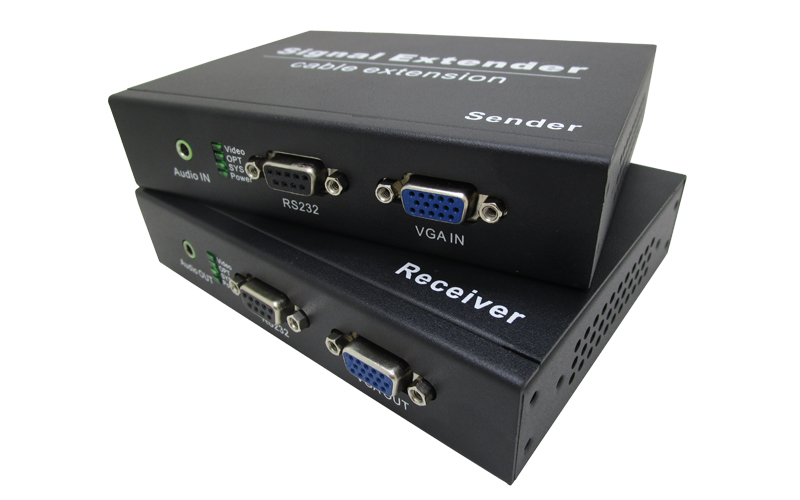

The kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver(marked with Receiver) unit.
This DFO-3VA VGA video and audio extender allows you to transmit HD 1920*1080P@60Hz VGA signals to distances up to 20km using a single-mode fiber cable.
Ideal for Military Command and Control systems , public safety management systems, traffic control systems, energy and electric power supply, government departments, health care systems, trade fairs, multi-media halls, public utilities applications etc.

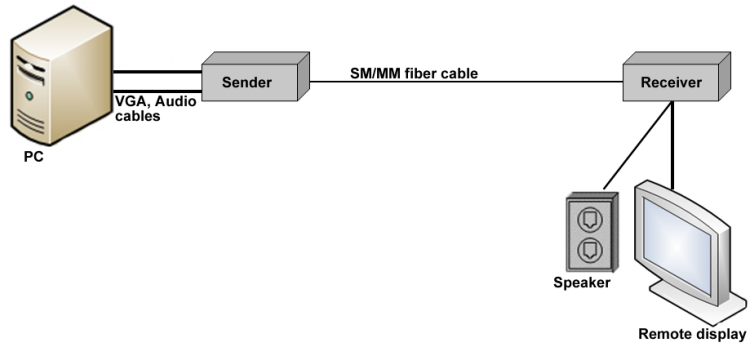

Connection Diagram:
1. Uncompressed digital processing ensures crystal-clear transmission with strong anti-interference ability;
2. Extends VGA signals up to 500m via multi-mode fiber cable or up to 20km via single-mode fiber cable;
3. Supports video resolutions up to 1920*1080@60Hz;
4. Features 3.5mm jacks on both the Sender and Receiver for audio speaker connection;
5. It requires only a single strand fiber, pure hardware design, compatible with any operating system;
6. Plug and play installation, no software or driver needed;
7. Anti-static, lightning protection, and strong anti-interference properties;
8. Features automatic video adjustment for optimizing image quality at maximum distances.
