USB-2101M(1 usb2.0 Interface Extender 150m)
USB-2101M(1 usb2.0 Interface Extender 150m)
Share to:

This kit comes as a pair, with one Sender unit(marked with Sender) and one Receiver unit(marked with Receiver).

By extending the USB connection beyond the standard 16-foot distance limitation to 328feet, the USB-2101M 1-port USB2.0 extender kit provides workstation flexibility to place your computer and the USB device where they are best suited. Backward compatible with USB 1.x devices, the extender enables almost any kind of USB device to be placed at remote locations away from the host computer system.

Ideal for a wide variety of USB devices, from printers, scanners, and hard drives to audio devices, touch screens, Web cams, and more!

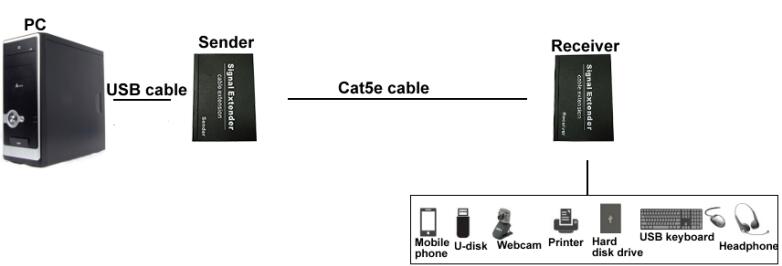

 Connection diagram:

1. Extends USB2.0 signals up to 100m via single Cat5e/6 cable;

2. Backwards compatible with USB1.1 devices;

3. Supports all major operating systems -- Windows, Mac OS and Linux;

4. High quality metal housing with cooling slots provide excellent heat dissipation and cooling for stable operation during extended hours of use;

5. Supports USB hot-swap, Plug-and-Play installation;

6. No driver installation needed for the extender, the USB driver is installed automatically by the operating system。

Dimensions (L x W x H)

Sender: 125 mm X 88mm X 30mm

Receiver: 125 mm X 93mm X 30mm

Transmission distance

0-100m

Cabling

RJ-45 connector Cat5/5e/6 UTP cable, Cat5e cable is recommended

USB protocol

USB2.0

USB ports

SenderUSB Type-B

ReceiverUSB Type-A

Supported OS

Windows, Linux, Unix......

Power supply

DC 12V/1.5-2A power adapter

Driver

No driver needed

Power consumption of Sender

3W

Power consumption of Receiver

4W
