This product consists of the transmitter (marked with Sender) and the receiver (marked with Receiver), Can extend the host computer's USB interface up to 100 meters through a single network cable, and in the receiver to expand the six USB interface, USB-2106A can also extend the Audio, Mic interface.
This product can be widely used in the field of computer and education, banking and securities systems.

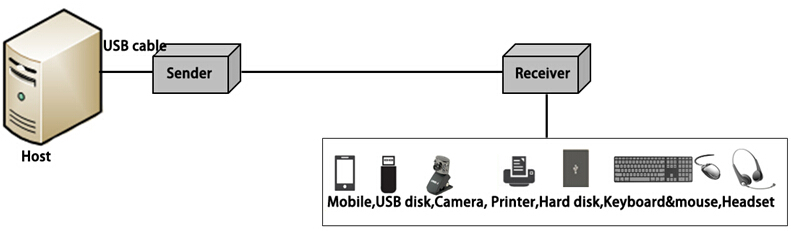

Application Map
1,USB2.0 high-speed stability, strong anti-interference
2,The receiver expands 6 USB ports
3,With external power supply, supports multiple or high-power USB devices
4,Compatible with almost any USB device
5,No driver, hot swappable
|
Number of input signal
|
1CH USB
|
|
Number of output signal
|
6CH USB+1CH（Audio+Mic）
|
|
Extend distance
|
0-100 meters
|
|
Cable specifications
|
CAT5E，CAT6 cable
|
|
USB standard
|
Support USB2.0 protocol
|
|

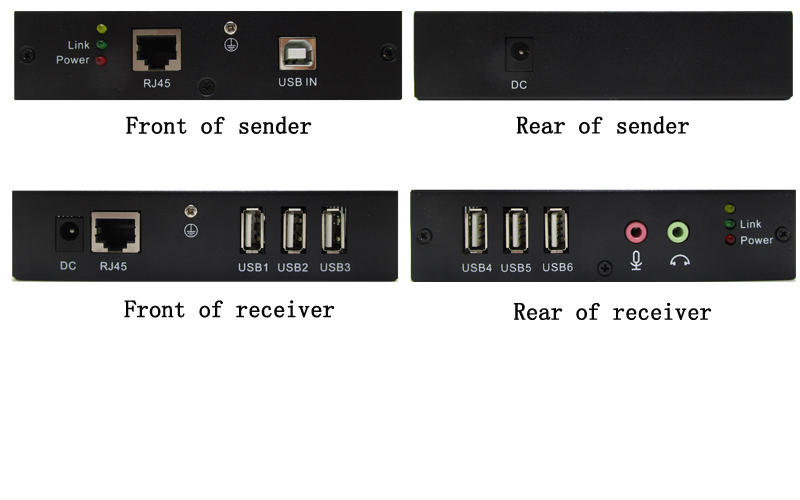

Interface type
|
Sender：USB B
Receiver：USB A
|
|
Power
|
Input：AC110V-220V，50/60HZ
Output：DC9V/2A
|
|
Drivers
|
No need drivers
|
|
Sender consumption
|
9W
|
|
Receiver consumption
|
9W
|
|
Size (L×W×H)
|
Sender：125X88X30(mm)
Receiver：125X88X30(mm)
|
|
N.W
|
0.62kg
|
