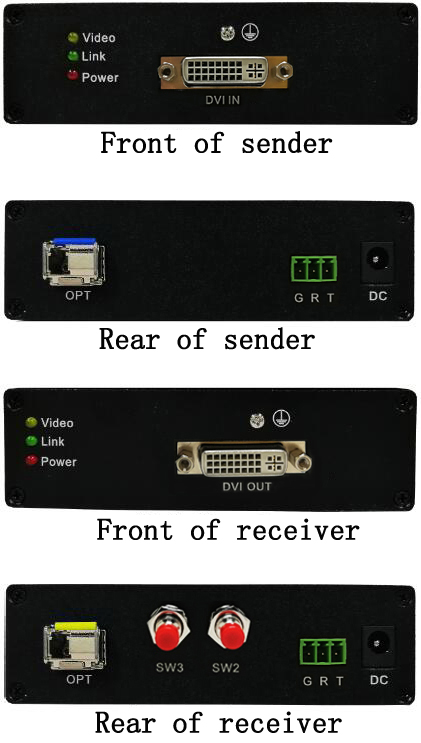

The kit comes as a pair, with one Sender
unit(marked with Sender) and one Receiver unit(marked with Receiver).
This TVO-5DS DVI extender allows you to transmit
uncompressed 4Kx2K@30Hz video signals to distances up to 20km using a
single-mode fiber optic cable. RS232 control lets you to connect a serial I/O device at
your display location- an ideal solution for adding a serial touch
screen interface to your remote display.
Ideal for HD monitoring, multimedia
release system, video conference, multimedia classroom,centralized PC
management, outdoor advertising,large screen splicing applications etc.

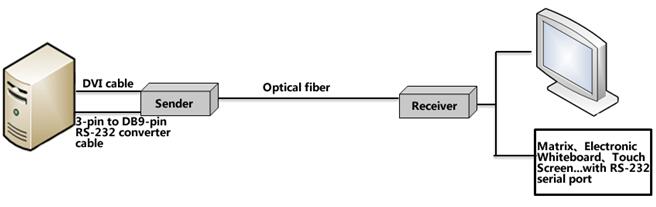

Connection Diagram:
1. Uncompressed audio and video at near zero latency, 100% true picture at
destination even over long distance
2. Supports
video resolutions up to 4Kx2K@30Hz
3. Ensure compatibility for your remote displays with EDID pass-through
4. Bi-directional
RS-232 extension
5. Direct 1-to-1 connection and 1-to-many connection through Gigabit fiber switch, a transmitter to multiple
receivers, you can accomplish the extender and splitter function
