UVO-3DAS(DVI+Two Way Audio+Two Way RS232+IR)High Speed Fiber Extend 20KM
UVO-3DAS(DVI+Two Way Audio+Two Way RS232+IR)High Speed Fiber Extend 20KM
Share to:
    The product is composed of transmitter(marked with sender)and receiver(marked with receiver),can extend the DVI video signal, Stereo audio, Mic signal to the far end through one single fiber optical cable. It can also transmit RS232 serial port signals for long-distance transmission with touch screen, pan/tilt, electronic whiteboard and other devices. IR signals can be used for infrared remote control of DVDs, set-top boxes and other devices. The farthest transmission distance is 20 kilometers, the user can control the computer at the remote end, the image effect is clear and natural, and the resolution is up to 4K×2K.
    Products can be used in security monitoring, multimedia information release, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

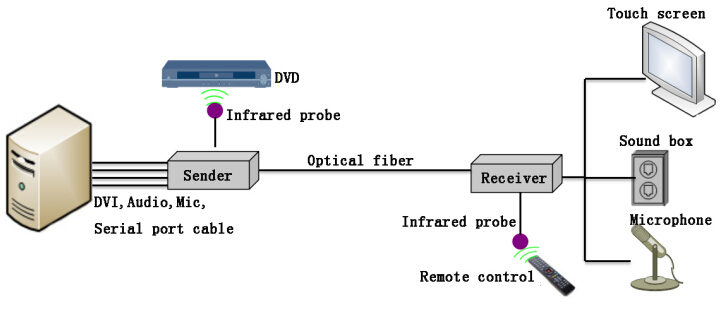

Connection Diagram:

1. Digital video transmission with zero latency, clear image and strong anti-interference ability;

2. Support multiple resolutions, maximum 4K×2K@30HZ; support 3D

3. Support EDID transparent transmission, compatible with different brands of display;

4. Support bidirectional transmission of audio;

5. Support bidirectional transmission of serial port;

Function

Number of input signal

Sender1CH(DVIRS232AUDIO)

Receiver1CH(MICIR

Number of output signal

Sender1CH(MICIR)

Receiver1CH(DVIRS232AUDIO)

Transmission distance

SM0-20km

MM0-2km

Video transmission performance

Video input/output interface

DVI-IOnly support DVI-D signal

Support HDCP version

HDCP1.2

DVI resolution

Maximum 4K×2K@30HZ

Audio

Interface

3.5mm stereo audio jack

Infrared remote control performance and interface

Remote interface

3.5mm audio jack

Remote interface signal

Infrared control signal

Optical port

Optical input, output interface

Single/multimode LC type

Transmission wavelength

850nm/1310nm/1550nm

Attribute

Size (L×W×H)

Sender:  131mm×93mm×32mm

Receiver:  131mm×93mm×32mm

Material

Aluminum

Color

Black

G.W

1Kg

Power supply

Adaptive voltage range

DC9V-12V/1A

Transmitter power consumption

3W

Receiver power consumption

3W

Operating environment

Storage temperature

-15-55

Relative humidity

-40-80

Working Temperature

0-95% (No condensation
