TVO-5H(HDMI Optical fiber transmission 20KM)

Share to：

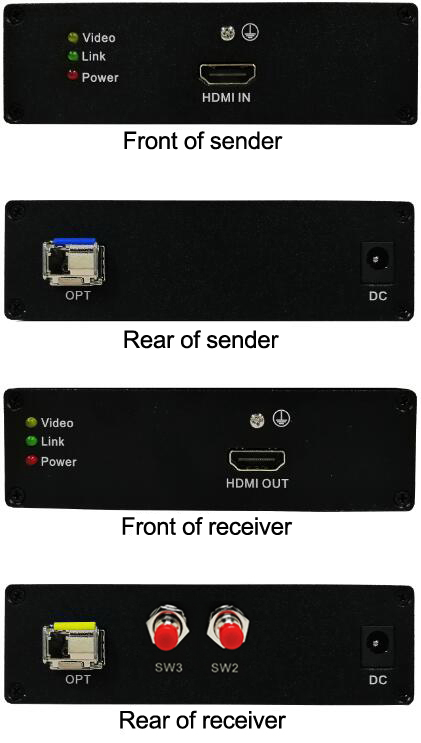

The kit comes as a pair, with one sender unit and one receiver unit.

This TVO-5H HDMI extender allows you to transmit 4Kx2K@30Hz video to distances up to 20km using a single-mode fiber optic or up to 2km using a multi-mode fiber optic.

Ideal for video conference, big screen advertising,large screen splicing system, multimedia release system, government departments and hospital applications etc.

Connection diagram:

1.Extends HDMI signals up to 20km via single fiber optic
2.Uncompressed audio and video at near zero latency
3.Supports video resolutions up to 4Kx2K@30Hz
4.HDMI1.4 compliant, 3D video supported
5.Able to read EDID , ensure compatibility for your remote displays

Function	Number of input signals	Sender：1channel HDMI
	Number of output signals	Receiver: 1channel HDMI
	Transmission distance	Single mode fiber optic ：0-20km Multi-mode fiber optic：0-2km
Video	I/O	HDMI
	HDMI Version	HDMI1.4
	HDCP	HDCP1.2
	Video resolutions	Up to 4K×2K@30HZ
	Color depth supported	24-bit/30-bit deep color/36-bit deep color
	Supported audio formats	DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
	TMDS	0.5-1.5Vp-p(TTL)
	DDC	5Vp-p(TTL)
Cabling	Type	SM/MM fiber optic, LC connector
Cabling	Wavelength	850nm/1310nm/1550nm
General	Dimensions(LxWxH）	Sender: 131mm×93mm×32mm Receiver: 131mm×93mm×32mm
	Housing	Aluminum enclosure
	Colors available	Black
	G.W.	1.2Kg
Power supply	Voltage	DC9V-12V/1A
	Power consumption of sender	3W
	Power consumption of receiver	3W
Operating environment	Working temperature	-15℃-55℃
	Storage temperature	-40-80℃
	Relative Humidity	0-95% (no condensation）
