IPHUP-200D(HDMI+USB+IR)POE Extender
IPHUP-200D(HDMI+USB+IR)POE Extender
Share to:

The kit comes as a pair, with one sender unit and one receiver unit.

This HDMI KVM Extender extends high definition video and audio signals(up to 1920x1080P@60Hz), KVM (Keyboard, Mouse) signals, and IR signals at a distance of up to 200m over a single Cat5e/6 cable.


Furthermore, the IPHUP-200D features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch; therefore, eliminating the need for a power adapter and effectively reducing the power configuration cost.

Ideal for HD security monitoring,data service center, Industrial control system, online video education,multimedia information release systems etc.

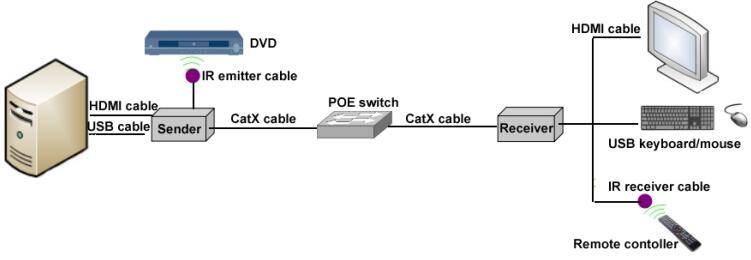

One-to-one connection diagram:

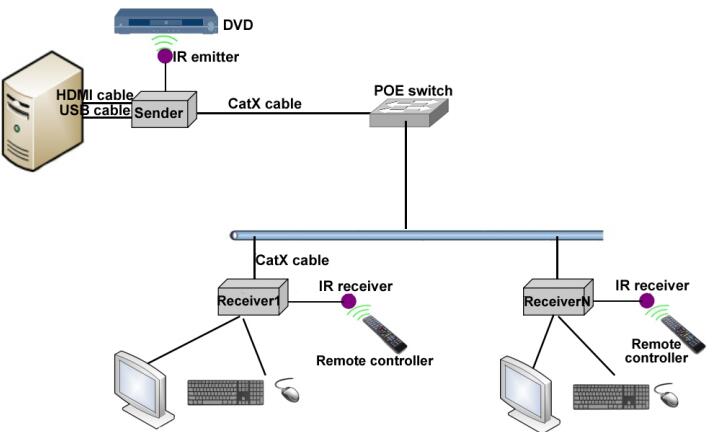

One-to-many connection diagram:


1It supports video resolutions up to 1920×1080@60Hz

2This HDMI extender features Power over Ethernet (PoE) function, the power can be supplied through a PoE Network Switch, no external power adapter needed.

3The local and remote units can be connected together for a Point-to-Point connection via CatX cable or a Point-to-Many connection via a POE network switch.

4Plug and play,requires no installation or configuration

5Supports DVI signals using an HDMI-to-DVI adapter

6IR port for optional IR remote control function

Functions

Input signals

Sender1channelHDMIUSB

Receiver1channel IR

Output signals

Sender1channel IR

Received1channel HDMI2 channel USB

Transmission distance(point to point)

Sender to POE network switch:0-100m

Receiver to POE network switch: 0-100m

Video

Input

HDMI

Output

HDMI

HDMI Version

HDMI1.3

HDCP

HDCP1.2

Video resolutions

Up to 1080P

Color depth supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC signal voltage

5Vp-p(TTL)

USB

Connector

Type-A

Protocol

For USB keyboard/mouse only

Infrared remote control

Connector

3.5mm audio jack

Remote control interface signal

Infrared remote control signal

General

DimensionL×W×H

Sender: 165mm×140mm×30mm
Receiver: 165mm×140mm×30mm

Net weight

1Kg

Enclosure type

Iron

Color

Black

Power supply

Powered by

Powered by POE network switch

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation
