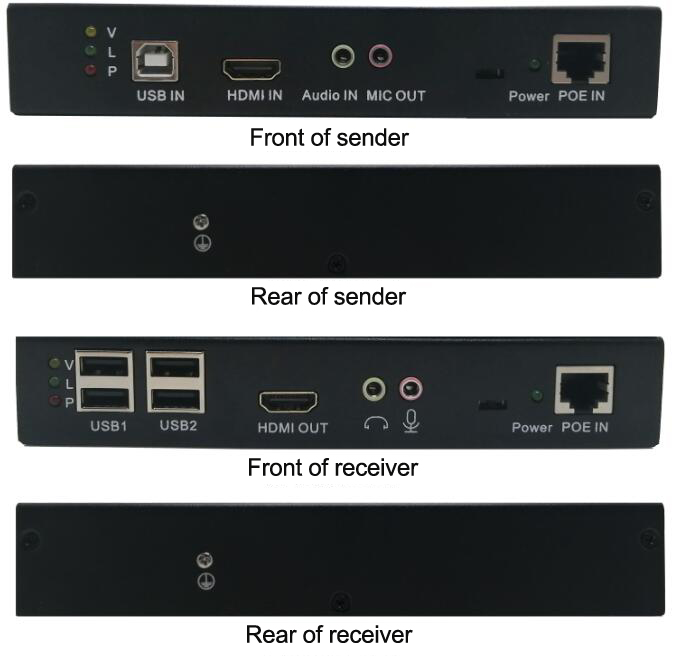

This product is a pair of complete sets of equipment, one of which is a transmitter (marked with Sender) and one is a receiver (marked with Receiver); HDMI video, independent audio, microphone, USB2.0 can be transferred through a Gigabit POE switch Extend to the far end. The maximum distance between the transmitter and receiver and the POE switch is 100 meters. The user can control and use the computer at the far end. The image effect is clear and natural, and the resolution is up to 4K × 2K.
The products can be used in security monitoring, multimedia information release, video conference, multimedia classroom, centralized host management, large-screen advertising, education system, splicing system, etc.

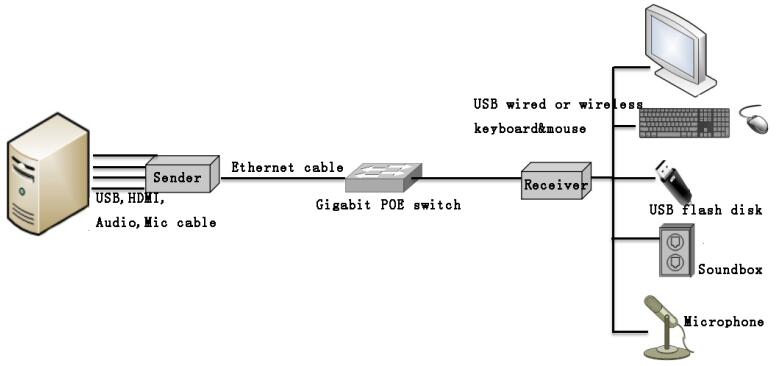

Connection diagram:
1. Digital video transmission with zero latency, the image is clear and the anti-interference ability is strong;
2. Support multiple resolutions, up to 4K × 2K @ 30HZ;
3. Support HDMI1.4, support 3D;
4. Support EDID transparent transmission, compatible with display output devices of different brands;
5. Support USB2.0 protocol, USB device compatibility is good, up to 4 USB interfaces, support USB mouse and keyboard, high-definition camera, mobile phone charging and copying data, mobile storage device, touch screen, etc., high current design, will not drop , Convenient for users;
6. Support two-way audio transmission;
7. No external power supply, transmission through Gigabit POE switch;
8. Independent audio function (optional).
