IPHEL-120AS(HDMI+Two Way Audio+Two Way RS232+IR)High Speed Extender
IPHEL-120AS(HDMI+Two Way Audio+Two Way RS232+IR)High Speed Extender
Share to:
The kit comes as a pair, with one sender unit and one receiver unit.
it can extend HDMI video, independent audio, and microphone to the far end through a single network cable. The transmitter has an HDMI loop-out interface, which can display simultaneously with the remote end; and can also transmit RS232 serial signal at the same time, used for remote transmission with touch screen, PTZ, electronic whiteboard and other equipment control, IR infrared signal can be used for DVD, Infrared remote control of equipment such as set-top boxes. The farthest transmission distance is 120 meters. Users can control and use the computer at the far end, the image effect is clear and natural, and the resolution is up to 4K×2K.
The products can be used in security monitoring, multimedia information release, video conference, multimedia classroom, centralized host management, large-screen advertising, education system, splicing system, etc.

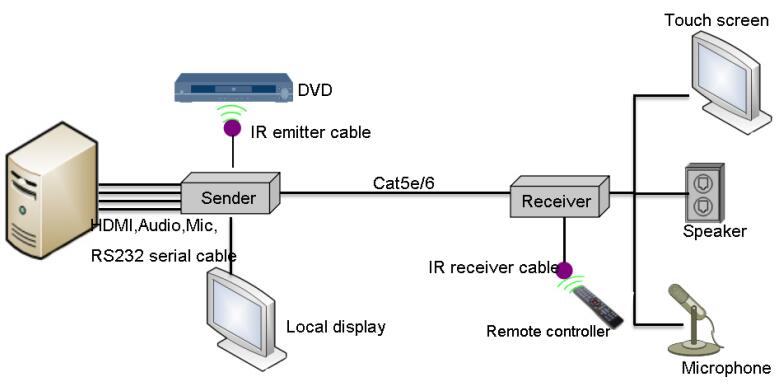

Connection Diagram:

1. Digital video transmission with zero latency, the image is clear and the anti-interference ability is strong;
2. The transmitter has an HDMI local loop out interface;
3. Support multiple resolutions, up to 4K×2K@30HZ;
4. Support HDMI1.4, support 3D;
5. Support EDID transparent transmission, compatible with display output devices of different brands;
6. Support two-way audio transmission;
7. Support transmission through Gigabit LAN;
8. Infrared, serial port, audio function (optional).

Function

Number of input signals

Sender1channel(HDMIRS232AUDIO)

Receiver1channel(MICIR

Number of output signals

Sender1channel(HDMIMICIR)

Receiver1channel(HDMIRS232AUDIO)

Max. Transmission distance

0-120m (point to point)

Video

I/O

HDMI

HDMI version

HDMI1.4

HDCP

HDCP1.2

Video resolutions

Up to 4K×2K@30HZ

Color depth supported

24-bit/30-bit deep color/36-bit deep color

Supported audio formats

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC signal voltage

5Vp-p(TTL)

Audio

Connector

3.5mm stereo audio jack

RS232

Connector

3-pin phoenix contact

Type

Bidirectional

Infrared remote control

Connector

3.5mm audio jack

Remote control interface signal

Infrared remote control signal

Network port

RJ-45

Cat5E/Cat6

General

DimensionL×W×H

Sender:  131mm×93mm×32mm
Receiver:  131mm×93mm×32mm

Enclosure type

Aluminum

Color

Black

G.W.

1Kg

Power supply

Voltage

DC9-12V/1A

Power consumption of sender

4W

Power consumption of receiver

3W

Operating environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (no condensation
