IPHE-125H(HDMI+Two Way RS232+IR)High Speed Extender
IPHE-125H(HDMI+Two Way RS232+IR)High Speed Extender
Share to:

This product is a pair of complete sets of equipment, one of which is a sender and one is a receiver; the sender is marked with the word "Sender" and the receiver is marked with the word "Receiver".HDMI video can be extended to the remote end through a single optical fiber, and can also transmit RS232 serial port signal at the same time, which is used for long-distance transmission with touch screen, cradle head, electronic whiteboard and other devices. IR signal can be used for infrared remote control of DVD, set-top box and other devices.

The longest transmission distance of direct connection is 125 meters, and the image effect is clear and natural after transmission, supporting resolution up to 4K× 2K.

Products can be used in security monitoring, multimedia information publishing, video conferencing, multimedia classrooms, centralized management of hosts, large-screen advertising, education systems, splicing systems, etc.

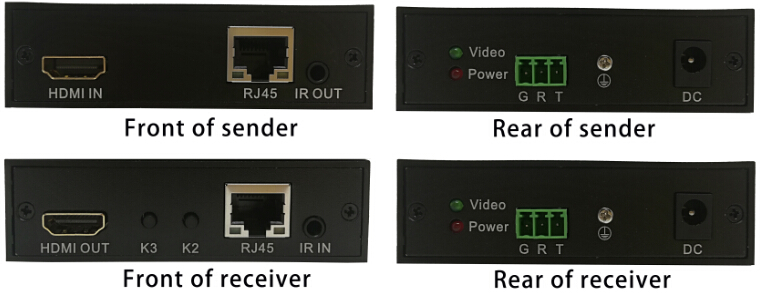

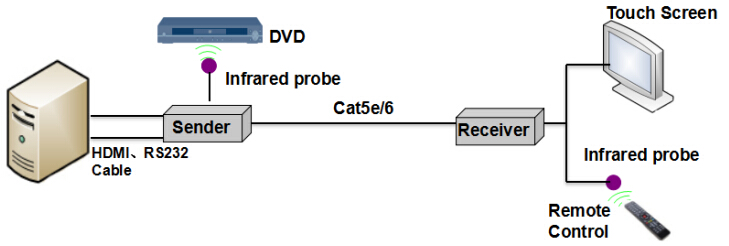

one to one connection diagram:

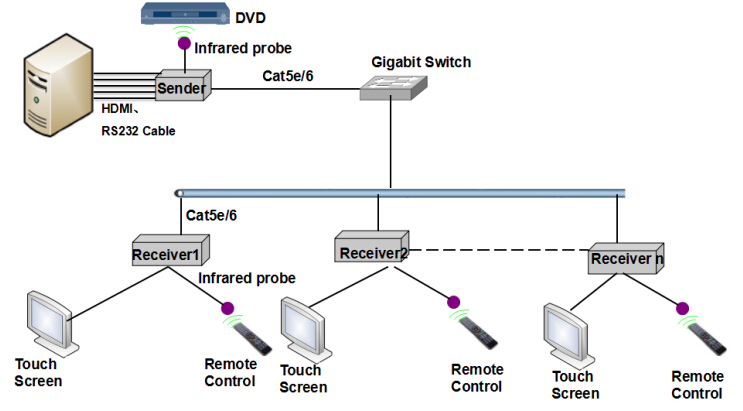

one to many connection diagram:


1. Digital uncompressed transmission, clear image and strong anti-interference ability;

2. Support multiple resolutions up to 4K×2K@30HZ;

3. Support HDMI1.4, support 3D;

4. Support reading EDID, compatible with different brands of display devices and able to lock screen

5. Access to Gigabit switches for one-to-many transmission

6. Support bidirectional transmission of serial port;

7. Infrared, serial port (optional).

Function

Number of input signal

Sender1CH(HDMIRS232)

Receiver1CH(IR

Number of output signal

Sender1CH(IR)

Receiver1CH(HDMIRS232)

Transmission distance

Cable directly connected0-125m

Video transmission performance and interface part

Video input/output interface

HDMI

Support HDMI version

HDMI1.4

Support HDCP version

HDCP1.2

HDMI Resolution

Max support 4K×2K@30HZ

Support video color format

24bit/deep color 30bit/deep color 36bit

Audio format support

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Input and output TMDS signals

0.5-1.5Vp-p(TTL)

Input/output DDC signal

5Vp-p(TTL)

Serial

Interface

Industrial terminal

model

Two-way transmission

Infrared remote control performance and interface

Remote control interface

3.5mm Audio socket

Remote control interface signal

Infrared control signal

Internet access

RJ-45

Cat5E/Cat6 (use shielded cable)

Attribute

sizeL×W×H

Sender:  120mm×106mm×30mm
Receiver:  120mm×106mm×30mm

The shell

Aluminum

Color

Black

GW

1.2Kg

Power supply

Voltage range

DC9V-12V/1A

Sender consumption

3W

Receiver consumption

3W

Operating environment

Working Temperature

-15-55

Storage temperature

-40-80

Relative humidity

0-95% (No condensation
