TVO-3H(HDMI 4Kx2K Uncompressed 4KM)
TVO-3H(HDMI 4Kx2K Uncompressed 4KM)
Share to:

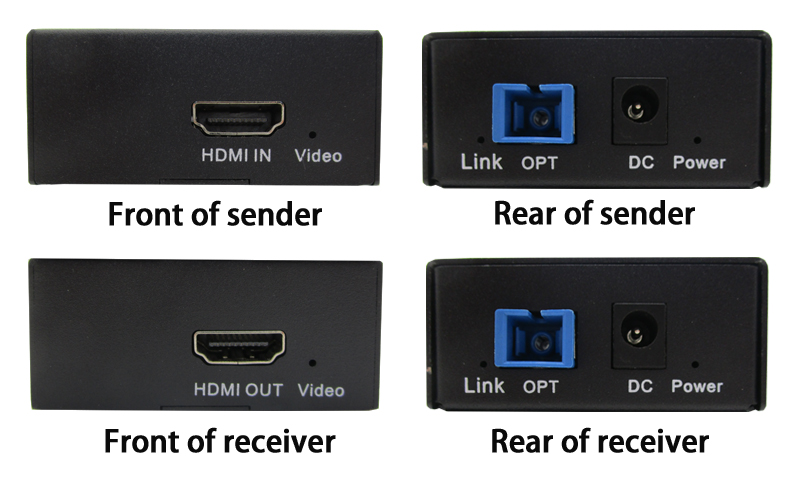

      The product include one transmitter (marked with sender)and one receiver (marked with receiver),Can extended the HDMI signal to the remote through optical fiber,Using high bandwidth Uncompressed techniques for digital signal transmission, user can see real-time image in remote.
    This product support HDMI HD video and audio real-time transmission, maximum transmission distance up to 4 km single-mode fiber, multimode fiber maximum transmission distance up to 600 meters.
    It can be used in the field of video conference, multimedia information distribution, government, medical system, commercial display, multimedia function hall, utilities and so on.

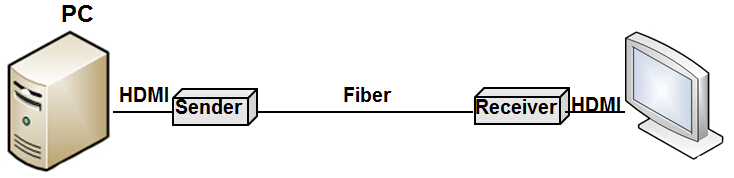

Application Map




1. All digital, uncompressed, no delay transmission.
2. Transmission rate up to 18Gbps.
3. Supports both single-mode fiber and multimode fiber.
4. Single-core optical fiber transmission, saving wire cost.
5. Support 4K × 2K resolution.
6. Optical module supports bidirectional transmission.Support HDMI transparent transmission, automatic reading EDID,compatible with a variety of signal sources and display output device.

Function

Number of input signal

1CH HDMI

Number of output signal

1CH HDMI

Transmission distance

MM:600M
SM:4KM

Video transmission performance

HDMI resolution

Maximum support 4K×2K

Video color format

24bit /30bit /36bit

Audio Format

DTS/HD/Dolby-TureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Maximum Transfer Rate

18Gbps

Input output TMDS signal

0.5-1.5Vp-p(TTL)

Input output DDC signal

5Vp-p(TTL)

Optics part

Optical input output interface

Single/multi mode  SC

Transmission wavelength

1310nm/1550nm

Power supply

Voltage range

Input:AC110V-220V,50/60HZ
Output:DC9V/1A

Power consumption

Sender:5W
Receiver:5W

Appearance attribute

Size (L×W×H)

Sender:106mm×58mm×25mm
Receiver:106mm×58mm×25mm

Material

Steel casing

Color

Black

N.W

0.4kg

Operating environment

Storage temperature

-40-80℃

Relative humidity

0-95% (No condensation)

Working Temperature

-15℃-55℃
