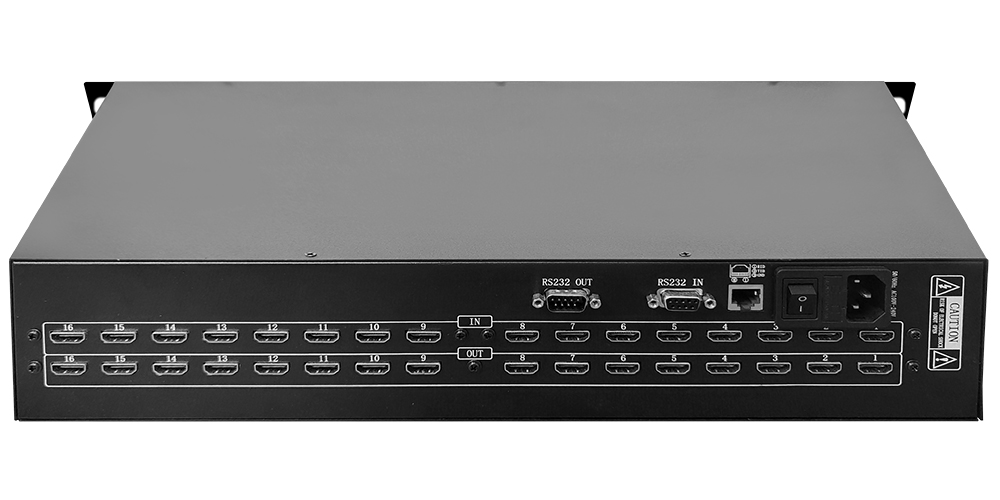

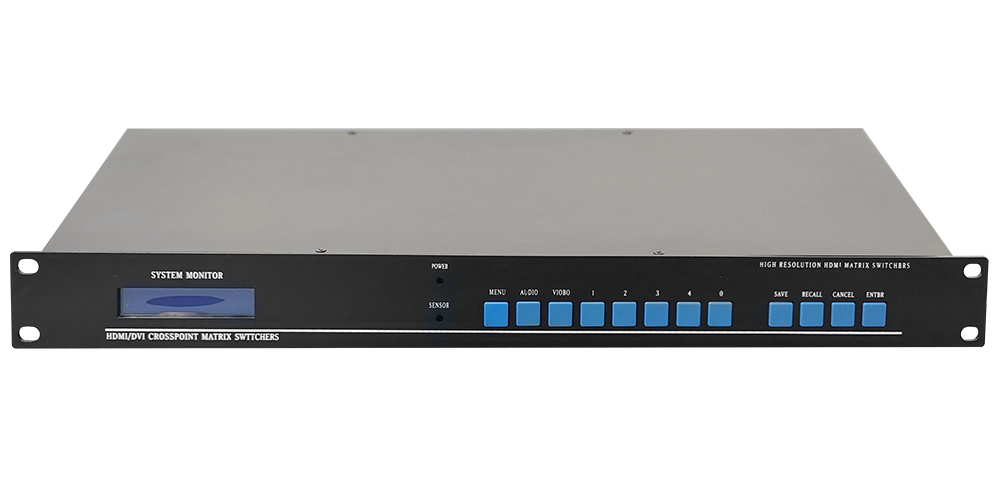

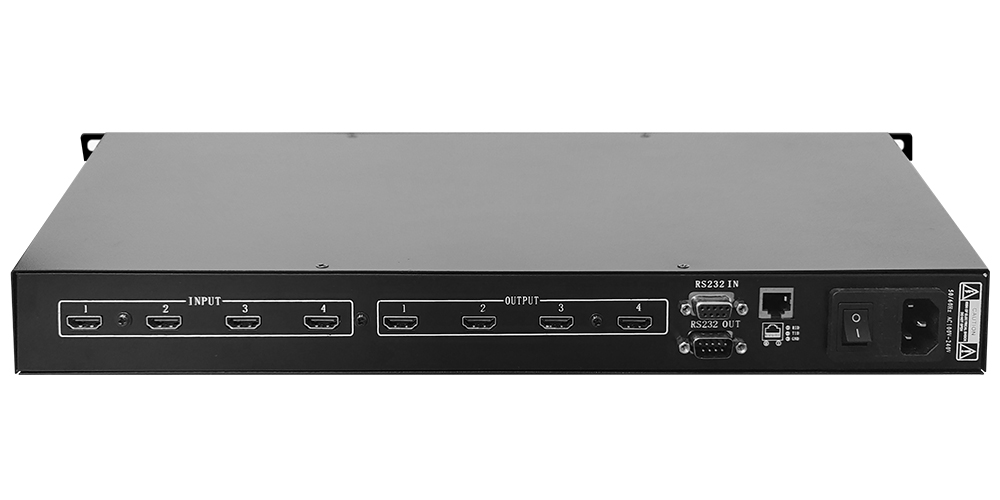

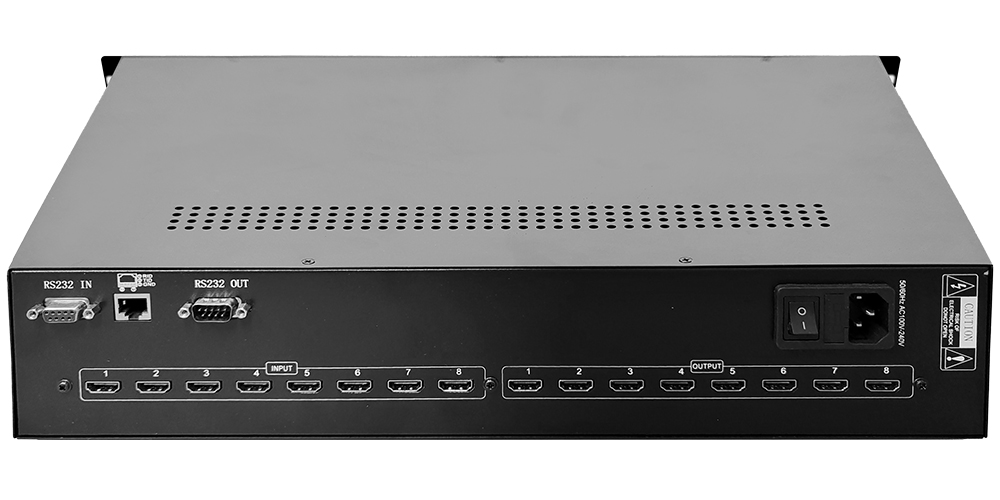

Specification
|
Parameter
|
|
Input
|
Interface：Type-A-type HDMI Female
Minimum Level：0.5Vp-p
Maximum Level：1.0Vp-p
Differential Impedance：100Ω
Return Loss：-30db@5MHz
|
|
Output
|
Interface：HDMI A-type(19 pin) Female
Input Level：0.7Vp-p
Differential Impedance：100Ω
Return Loss：-30db@5MHz
DC Compensation：5mV(Max)
It is recommended that the maximum input distance is less than 15 meters at 3840x2160 @ 30Hz (it is recommended to use certified HDMI cable, depending on the cable quality.)
|
|
Signal Type
|
HDMI1.4 specification HDMI-A all-digital T.M.D.S. signal
|
|
Protocol
|
Support HDMI1.4 Protocol，compatible with DVI1.0 Protocol
|
|
Resolution
|
BOX&DVD:480i@60HZ，576i@60HZ，480P@60HZ，576P@60HZ，720P@50HZ，720i@60HZ，1080i@25 HZ，1080P@30HZ，1080P@50HZ，1080P@60HZ，4K*2K@30HZ。
Laptop&PC:800*600 24/50/60Hz，1024*768 24/50/60Hz，1152*864 24/50/60Hz，1280*600 24/50/60Hz，1280*720 24/50/60Hz，1280*768 24/50/60Hz，1280*800 24/50/60Hz，1280*960 24/50/60Hz，1280*1024 24/50/60Hz，1360*768 24/50/60Hz，1366*768 24/50/60Hz，1400*1050 24/50/60Hz，1400*900 24/50/60Hz，1600*900 24/50/60Hz，1600*1024 24/50/60Hz，1600*1200 24/50/60Hz，1680*1050 24/50/60Hz，1920*1080 24/50/60Hz，1920*1200 24/50/60/75/85Hz，1920*1440 60/70/85Hz，2048*1536 60Hz，2560*1440 60/70/75Hz，2560*1600 60Hz，3840*2160 24/25/30Hz,3840*2160 24/30Hz。
|
|
Serial interface
|
RS232,9-pin female D-type connector, Ports 2, 3 and 5 are directly connected
Serial port parameters: 9600bps, 8-bit data, 1 start bit, 1 stop bit, no check, no flow control
|
|
Control Method
|
Panel Button、RS232、Remote Controller（Optional）、PC software control
|
|
Power Supply
|
DC12V/2A
|
|
Power Consumption
|
30～150W（Depending on the specific model to determine power consumption）
|
|
Operation Temperature
|
0℃～45℃
|
|
Relative Humidity
|
10%―90%
|
|
Installation
|
Cabinet Installation、Desktop Installation
|
|
Shock Resistance
|
1m cement floor（include package）
|
|
ESD
|
8KVDC
|
