HMX-16x16P(HDMI16 into 16 video matrix)
HMX-16x16P(HDMI16 into 16 video matrix)
Share to:
       HDMI 16 in 16 out matrix switcher, support HDMI1.4 standard, it can switch from any 16 HDMI signal source to 16 different HDMI output devices, any signal source can achieve instant switch through RS232 or the infrared remote control or network control or front panel switch button at any time , no longer need to disconnect or plug cable.

Specification

Parameter


Input

Interface:Type-A-type HDMI Female

Minimum Level:0.5Vp-p

Maximum Level:1.0Vp-p

Differential Impedance:100Ω

Return Loss:-30db@5MHz

Output

Interface:HDMI A-type(19 pin) Female

Input Level:0.7Vp-p

Differential Impedance:100Ω

Return Loss:-30db@5MHz

DC Compensation:5mV(Max)

It is recommended that the maximum input distance is less than 15 meters at 3840x2160 @ 30Hz (it is recommended to use certified HDMI cable, depending on the cable quality.)

Signal Type

HDMI1.4 specification HDMI-A all-digital T.M.D.S. signal

Protocol

Support HDMI1.4 Protocol,compatible with DVI1.0 Protocol

Resolution

BOX&DVD:480i@60HZ,576i@60HZ,480P@60HZ,576P@60HZ,720P@50HZ,720i@60HZ,1080i@25 HZ,1080P@30HZ,1080P@50HZ,1080P@60HZ,4K*2K@30HZ。
Laptop&PC:800*600 24/50/60Hz,1024*768 24/50/60Hz,1152*864 24/50/60Hz,1280*600 24/50/60Hz,1280*720 24/50/60Hz,1280*768 24/50/60Hz,1280*800 24/50/60Hz,1280*960 24/50/60Hz,1280*1024 24/50/60Hz,1360*768 24/50/60Hz,1366*768 24/50/60Hz,1400*1050 24/50/60Hz,1400*900 24/50/60Hz,1600*900 24/50/60Hz,1600*1024 24/50/60Hz,1600*1200 24/50/60Hz,1680*1050 24/50/60Hz,1920*1080 24/50/60Hz,1920*1200 24/50/60/75/85Hz,1920*1440 60/70/85Hz,2048*1536 60Hz,2560*1440 60/70/75Hz,2560*1600 60Hz,3840*2160 24/25/30Hz,3840*2160 24/30Hz。


Serial interface

RS232,9-pin female D-type connector, Ports 2, 3 and 5 are directly connected
Serial port parameters: 9600bps, 8-bit data, 1 start bit, 1 stop bit, no check, no flow control

Control Method

Panel Button、RS232、Remote Controller(Optional)、PC software control、Network control

Power Supply

AC 100V-240V/50Hz(The factory default input voltage AC220V, other input voltage when ordering please specify.)

Power Consumption

30~150W(Depending on the specific model to determine power consumption)

Operation Temperature

0℃~45℃




Relative Humidity

10%―90%

Installation

Cabinet Installation、Desktop Installation

Shock Resistance

1m cement floor(include package)

ESD

8KVDC

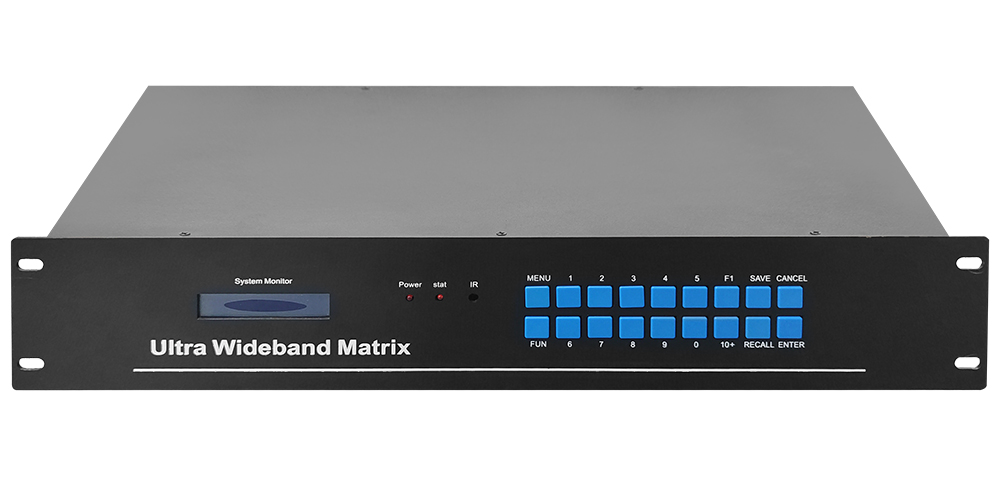

Front and rear panel
