The SDI over fiber converter adopts the latest video process technology, which support long distance and high quality transmission of 1 channel video signal at real time. And signal format ranges 19.4Mbps~ 2.97Gbps, support SMPTE292, SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M etc.
Applications:
1, HDTV signal broadcasting transmission systems
2, Multimedia display and information publication system
3, Traffic and information display system
4, Multimedia conference system, sports center, AV entertainment center
5, Military command and control center
6, Automatic medical control system
7, Multimedia teaching system
8. Community security surveillance, airport, bus station etc.
Function and Feature:
1, Support 1 channel video transmission
2, Distance up to 20KM over SM fiber cable
3, Available for 19.4Mb/s~2.97Gb/s
4, 100m Automatic cable equalization, suitable for the all rates bellow 2.97Gb/s
5, Support video intact regenerative relay
6, LED indicator to monitor all critical parameters
7, No software needed, support plug and play
8, with anti-surge and anti-electrostatic protection function
Technical parameters:
1, Serial TV: BNC input
Input interface: BNC
Number of input: 1 Channel
Signal standard: SMPTE 424M, SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI
Reflection loss: >15DB
Equalization: 0-150m @ 1.485Gb/s
Connector: 75Ω BNC
2, Optical
Number of fiber: 1 fiber
Cable type: SM single fiber (MM for option)
Wavelength: 1310/1550nm
Reflection loss: >15DB
Vibration: <0.2UI
Connector: FC
3, Serial TV: BNC output (EO/OE)
Number of output: 1
Signal level: 800mV nominal
Rise/Fall time: 200ps nominal
Reflection loss: >15DB
Vibration: <0.2UI
Connector: 75Ω BNC
4, Others:
Working temperature: -25℃～＋70℃
Power adaptor: DC12V /1A
Power: 12W
EMI/RFI comply with FCC Part 15 Class A, EU EMC
MTBF: >100000hours
Size: 130(L)mm x 110(W)mm x 25mm(H)
Weight: 0.5kg
LED: Optical and SID working status indicator

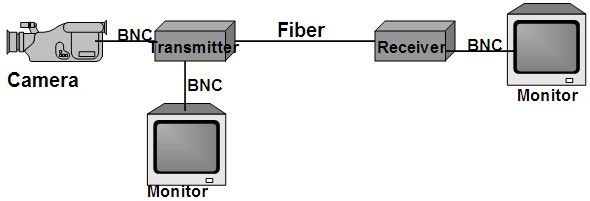

Front drawing:
