VGA-200HDP(POE VGA EXTENDER)
VGA-200HDP(POE VGA EXTENDER)
Share to:
VGA-200HDP(POE) VGA  Extender is one of our independent development products.The newest promoted VGA Extender has high quality of imagine,It may widely apply in the computer,monitor, security,multimedia teaching systems and so on.It promotes the function of anti-thunder and antijamming.
Product Features

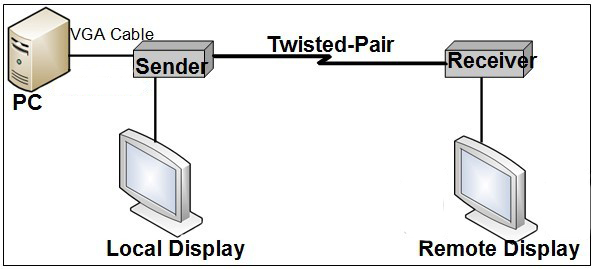

1,Transmitter connected to an external power source, the receiver powered through the network cable to extend the most as far as 180 meters; receiver is connected to an external power supply, transmitter power through the network cable to extend the most as far as 130 meters
2,provider a VGA interface on the transmitter for using locally
3,using single CAT5E/CAT6 cable to extend signal,save cost
4,Support POE
5,Software free, pure hardware design, support Plug & Play
6,the video signals on the receiver are Real-time
7,Crisp clear VGA images & strong ability for anti-jamming
8,Can cascade operation for increase VGA outputs
9,Support MS-DOS,Windows,Linux,Unix,Novell
10,Use the high grade CMOS chip, accommodate to wide temperature range
11,Anti-thunder and antijamming index:withstand air-discharge 15KV, contiguity-discharge 8KV
12,Support the top resolution 1920x1400@85Hz

paramenter:

Size:

108 mmx94mmx30mm

Weight:

0.5KG

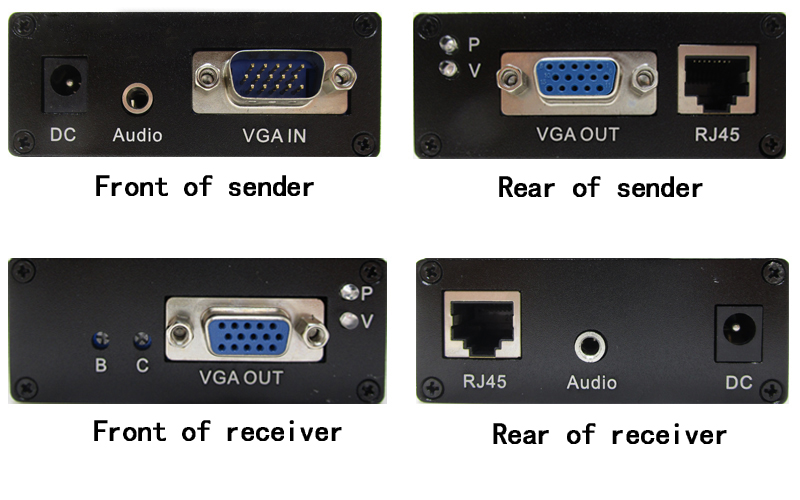

input connector:

HD15PIN(VGA)

output connector:

HD15PIN(VGA)

local output:

HD15PIN(VGA)

bandwidth:



300MHz(-3 dB)

0-10MHz +0.1dB

0-130MHz +6dB to -0.8 dB

input level range:

0.5-2.0Vp-p

input level error:

less than 3mV

input impedance:

75Ω

output impedance:

75Ω

echo ullage:

-30dB@5MHz

Max DC compensation:

±5mV-0

SNR:

60dB

Connector standard:

HDB15,RJ45

Video standard:

VGA,SVGA,XGA,SXGA,UXGA,LCD

Cable standard:

 cat5e, cat6 UTP cable

Power adapter:

DC12V/1A

operational temperature:

-25℃~+70℃

deposited temperature:

-40℃~+80℃

relative humidity:

0~95%(non-condensing)

MTBF:

>30000 hours
