Product Introduction:

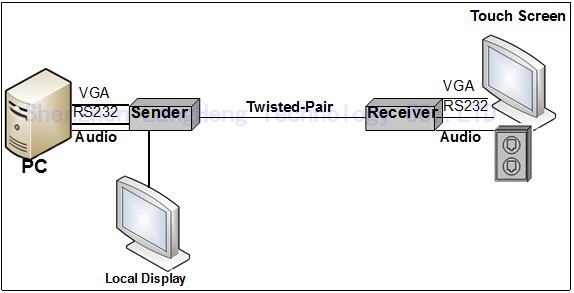

The product includes a sender and a receiver, which can transmit VGA video, Audio and RS232 signal of PC remotely by single cat5e, distance can reach 200meters, and max resolution 1920*1080 @ 60Hz.
The product is widely used in touch screen control, remote multimedia and computing systems.
Product Feature:
1, Max resolution support 1920*1080 @ 60Hz
2, Support VGA, RS232 and Audio signal transmission at distance of 200meters
3, Single cat5e transmission, pure hardware design, no need any software driver.
4, No need to any settings
Product Specification:
|
Function
|
Input signal
|
Sender: 1 channel（VGA, AUDIO, RS232）
|
|
Output signal
|
Sender: 1 channel VGA
Receiver: 1 channel（VGA, AUDIO, RS232）
|
|
Extension distance
|
200meters
|
|
Video
|
Video input
|
HD15PIN (male VGA)
|
|
Video output
|
HD15PIN (female VGA)
|
|
Video signal bandwidth
|
>350MHz(-3dB)
|
|
synchronized signal
|
>200KHZ
|
|
Video resolution
|
1080p
|
|
Audio
|
Interface
|
3.5mm stereo audio jack
|
|
Bandwidth
|
10HZ~20KHZ
|
|
RS232
|
Input
|
DB-9（male）
|
|
Output
|
DB-9（male）
|
|
Connection
|
RJ-45
|
Cat5e/Cat6
|
|
Physical parameter
|
Size（L× W×H）
|
Sender: 130mmX110mmX30mm
Receiver: 130mmX110mmX30mm
|
|
Net weight
|
0.75Kg
|
|
Power supply
|
Voltage
|
Input: AC110V-220V，50/60HZ
Output: DC5V/2A
|
|
Sender power consumption
|
<6W
|
|
Receiver power consumption
|
<4W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|

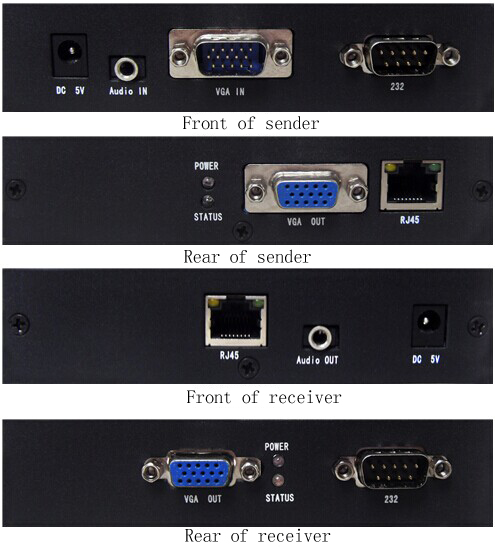

Front drawing:
