 VGA-232HD(Video&RS232 Extender 300m)
VGA-232HD(Video&RS232 Extender 300m)
Share to:

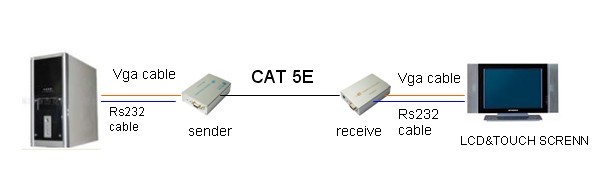

This set of equipment includes a sender and a receiver. VGA-232HDis our newly developed product to extend video, RS232 interface of computer max up to 300meters, it supports high resolution transmission of video signal at real-time, the picture image is very clear and stable after long distance transmission, also it is anti-lightning designed, which can effectively protect from the lightning invasion.
This product can be widely used in computer remote control and monitor, touch screen control, multimedia education etc.
1,Support the top resolution 1920x1400@85Hz

Production Specification:

Size:
108mm(L)*74mm(W)*30mm(H)
Weight:
0.5Kg
Extension Distance:
VGA/RS232 max up to 300meters
Cable type:
CAT5,CAT5E,CAT6 UTP cable,and CAT5E UTP is suggested
Video Spec.:
VGA, SVGA, XGA, SXGA, UXGA, LCD
Video standard:
0.7Vpp
Interface type:
HDB15, HDB-9(RS232), RJ45
System support:
has nothing to do with operation system
Sender power adaptor:
DC12V /1A
Receiver power adaptor:
DC12V /1A
Anti-lightning Index:
air-discharge 15KV, contiguity discharge 8KV

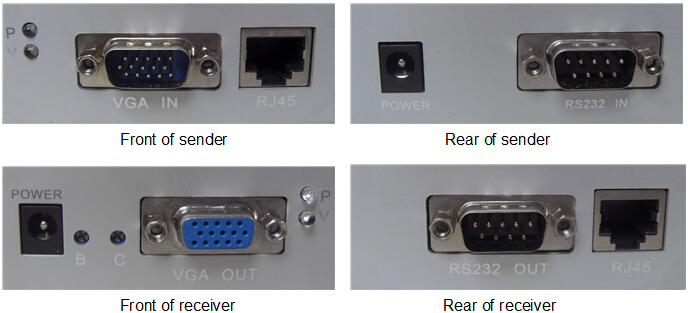

Front drawing:
