GVO-3H(HDMI 4Kx2K Uncompressed 10KM)

Share to：

Product Introduction

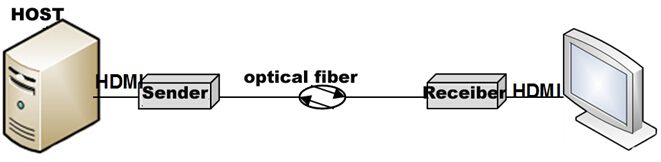

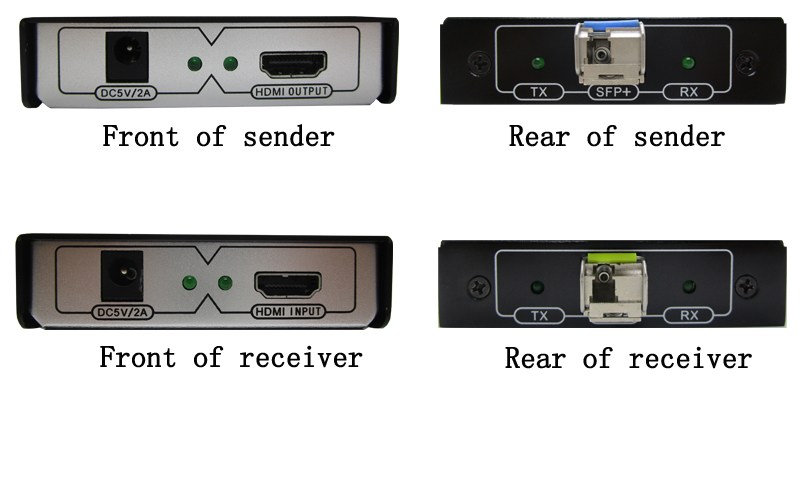

The product is composed of sender(marked with HDMI OUTPUT)and receiver （marked with HDMI INTPUT)，Can extended the HDMI signal to the remote through the optical fiber，Using high bandwidth Uncompressed techniques for digital signal transmission, user can see real-time image in remote.
This product support HDMI HD video and audio real-time transmission, maximum transmission distance up to 10 km single-mode fiber, multimode fiber maximum transmission distance up to 300 meters. can be used in the field of video conference, multimedia information distribution, government, medical system, commercial display, multimedia function hall, utilities and so on.

Model List

Model	Optical fiber	Transmission distance	Signal types	Select
GVO-1H	Single-mode double core	10km	HDMI	□
GVO-2H	Multi mode double core	300m	HDMI	□
GVO-3H	Single mode single core	10km	HDMI	□

Product Features
1.Full-digital,Uncompressed,no delay
2.Transmission rate can reach 10Gbps
3.Support HDMI1.4, 3D
4.Support HDCP
5.Support 4K×2K resolution
6.Pluggable optical module
7.Compatible DVI signal
8.Automatic EDID, to achieve HDMI transparent transmission

Production specifications

Function	Number of input signal	1CH HDMI
	Number of output signal	1CH HDMI
	Transmission distance	MM：300M SM：10KM
Video transmission performance	HDMI version	HDMI1.4
	HDCP version	HDCP1.2
	HDMI resolution	1080p/1080i/720p/720i/576p/576i/480p/480i,4K×2K
	Video color format	24bit /30bit /36bit
	Audio Format	DTS/HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
	Maximum Transfer Rate	10Gbps
	Input output TMDS signal	0.5-1.5Vp-p(TTL)
	Input output DDC signal	5Vp-p(TTL)
Optics part	Optical input output interface	Single/multi mode LC
Optics part	Transmission wavelength	850nm/1310nm
Power supply	Voltage range	DC5V/2A
Power supply	Power consumption	Sender：5W Receiver：5W
Appearance attribute	Size (L×W×H)	141mm×103mm×22mm
	Material	Steel casing
	Color	Black
	N.W	0.4kg
Operating environment	Storage temperature	-40-80℃
	Relative humidity	0-95% (No condensation）
	Working Temperature	-15℃-55℃
