Item Introduction

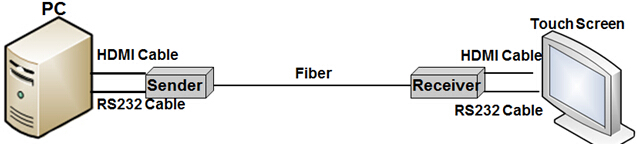

The product consists of a sender and a receiver which showed on the case,it can expand the signal HDMI/RS232 to somewhere remote by Single-core optical fiber,the high-speed Optical FPGA technology has been used that converting HDMI signal into an optical fiber signal transmission 3G resolution up to 1920*1080@60Hz, max distance 10KM.Widely used in a variety of industries and areas of security monitoring, hospitals, banks, splicing systems, multimedia information release system.
Model list
|
PN
|
optical fiber
|
Transmission distance
|
EDID reading
|
RTG transmission
|
|
EVO-3HS
|
Single-mode Single core
|
10KM
|
Manually
|
unidirectional
|
|
EVO-4HS
|
multi-mode single core
|
500m
|
Manually
|
unidirectional
|
|
EVO-3 HSD
|
Single-mode
Single core
|
10KM
|
Manually
|
bilateral
|
|
EVO-4 HSD
|
Multi-mode
Single core
|
500m
|
Manually
|
bilateral
|
Product features
█All-digital, uncompressed HD fiber-optic transmission technology
█Using HDMI 1.3b protocol
█Pluggable Optical Module
█Support reading EDID
█Resolution up to 1920x1080@60Hz
█Supports single mode / multimode fiber transmission
█Simple Installation, plug and play
Technical Parameters
|
function
|
Number of input signals
|
one channel(HDMI、R T G)
|
|
Number of output signal
|
one channel(HDMI、R T G)
|
|
Transmission distance
|
500m multimode/10KM single mode
|
|
Video transmission performance
and interface section
|
Support HDMI version
|
HDMI 1.3
|
|
Support HDCP version
|
HDCP1.2
|
|
HDMI resolution
|
1920*1080@60HZ
1680*1050@60HZ
1440*900@60HZ
1360*768@60HZ
1280*720@60HZ
1280*1024@60HZ
1280*768@60HZ
1024*768@60HZ
800*600@60HZ etc
|
|
Support video color format
|
24/30/36
|
|
TMDS signal input and output
|
0.5-1.5Vp-p(TTL)
|
|
DDC signal input and output
|
5Vp-p(TTL)
|
|
Optical portion
|
Optical input and output interface
|
Single/multimode LC type
|
|
Transmission wavelength
|
1310nm/1550nm
|
|
Power supply section
|
Adaptation voltage range
|
DC9V/1A
|
|
|
sender：6W
receiver：6W
|
|
Attributes
|
Size(L*W*H)
|
sender：116mm*110mm*25mm
receiver：116mm*110mm*25mm
|
|
case
|
Aluminum
|
|
color
|
black
|
|
Operating environment
|
storage temperature
|
-40-80℃
|
|
humidity
|
0-95% ( Non-condensing)
|
|
Operating temperature
|
-15℃-55℃
|
Product Interface
