Product Introduction:

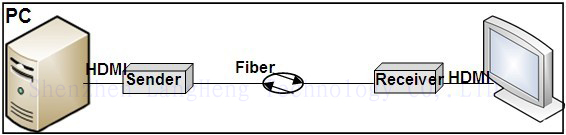

The device includes a sender and a receiver, which can transmit HDMI signal to remote display over fibe, and the device adopts high bandwidth uncompress signal transmission technology, so that user can see the real-time picture image remotely.
The product support HD HDMI video audio signal transmission at real-time, max resolution support can reach 4K×2K, max distance10KM.
The product can be widely used in video conference system, multimedia system, medical system, commercial presentation system, and public utilities etc.
Model list:
Model
|
Fiber type
|
Distance
|
Transmitting signal
|
select
|
DVO-1HA
|
Multi mode duplex fiber
|
300m
|
HDMI
|
□
|
DVO-2HA
|
Single mode duplex fiber
|
10km
|
HDMI
|
□
|
DVO-3HA
|
Single mode single fiber
|
10km
|
HDMI
|
□
|
DVO-4HA
|
Multi mode single fiber
|
300m
|
HDMI
|
□
|
Product Feature:
1, Adopt digital uncompress signal transmission technology, no time delay
2, Support HDMI1.4, 3D
3, Support HDCP
4,Support 4K×2K
5, Support hot plug and play
6, Compatible with DVI signal
Product Specification:
Function
|
Number of input signal
|
1channel
|
Number of output signal
|
1channel
|
Extension distance
|
300meters (multi mode)/10KM(single mode)
|
Video Specification
|
HDMI version
|
HDMI 1.3 1.4
|
HDCP version
|
HDCP1.2
|
HDMI resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i,4K×2K
|
Video color format
|
24bit/30bit/36bit
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
Max transmission speed
|
10Gbps
|
Input/output TMDS signal
|
0.5-1.5Vp-p(TTL)
|
Input/output DDC signal
|
5Vp-p(TTL)
|
Input cable length
|
≤5m AWG26 HDMI 1.3 standard cable
|
Output cable length
|
≤5m AWG26 HDMI 1.3 standard cable
|
Optical
|
Optical input/output
|
Single/Multi mode LC connector
|
Transmission wave length
|
850nm/1310nm
|
Power
|
Voltage
|
DC5V/3A
|
Power consumption
|
Sender: <3W
Receiver: <3W
|
Physical parameters
|
Size(L× W×H)
|
Sender: 112mm×112mm×26mm
Receiver: 112mm×112mm×26mm
|
Housing
|
Metal
|
Color
|
Black
|
Net weight
|
0.62kg
|
Environment
|
Storage temperature
|
-40-80℃
|
Humidity
|
0-95% (Non-condensing)
|
Working temperature
|
-15℃-55℃
|

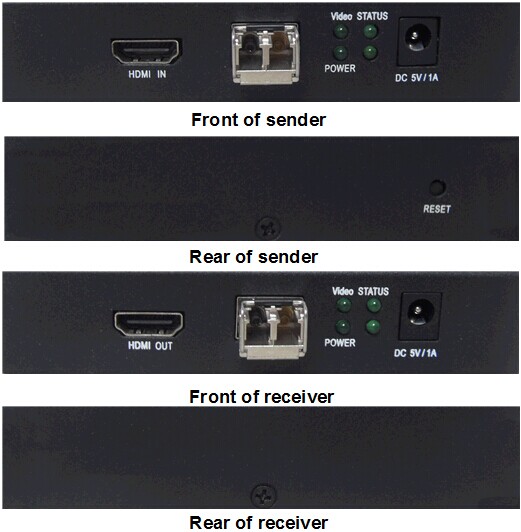

Front drawing:
