Product Introduction:

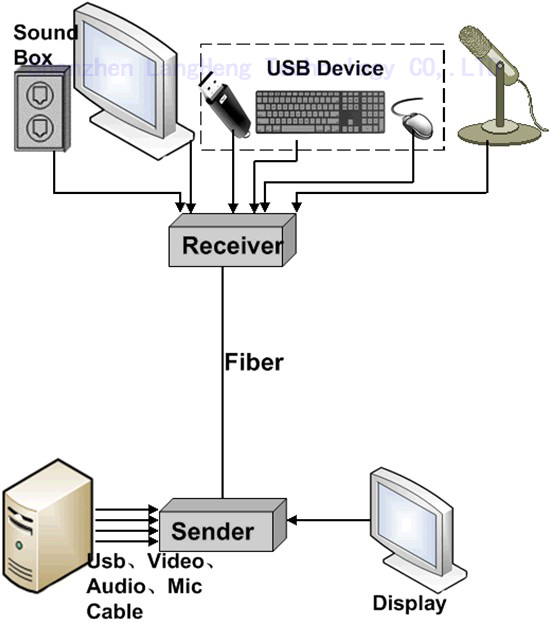

The product includes a sender and a receiver which can transmit HDMI/DVI, USB, RS232 signal of PC remotely by single/duplex fiber cable, also it provides a DVI output on sender for local use.
The product support HD DVI/HDMI signal transmission at real-time, max resolution can reach 1920×1200 @ 60Hz, max distance 2KM (multi mode)/20KM (single mode).
The product can be widely used in video conference system, multimedia system, medical system, commercial presentation system, and public utilities etc.
DVI model list:
|
Model number
|
Fiber type
|
Distance
|
Signals
|
selection
|
|
VDA-1UDA
|
MM duplex fiber
|
2KM
|
DVI, USB, AUDIO, MIC,
|
□
|
|
VDA-2UDA
|
SM duplex fiber
|
20KM
|
DVI, USB, AUDIO, MIC,
|
□
|
|
VDA-3UDA
|
SM single fiber
|
20KM
|
DVI, USB, AUDIO, MIC,
|
□
|
|
VDA-4UDA
|
MM single fiber
|
2KM
|
DVI, USB, AUDIO, MIC
|
□
|
|
VDA-1DA
|
MM duplex fiber
|
2KM
|
DVI, AUDIO, MIC
|
□
|
|
VDA-2DA
|
SM duplex fiber
|
20KM
|
DVI, AUDIO, MIC
|
□
|
|
VDA-3DA
|
SM single fiber
|
20KM
|
DVI, AUDIO, MIC
|
□
|
|
VDA-4DA
|
MM single fiber
|
2KM
|
DVI, AUDIO, MIC
|
□
|
HDMI model list:
|
Model number
|
Fiber type
|
Distance
|
Signals
|
Option
|
|
VDA-1UHA
|
MM duplex fiber
|
2KM
|
HDMI, USB
|
□
|
|
VDA-2UHA
|
SM duplex fiber
|
20KM
|
HDMI, USB
|
□
|
|
VDA-3UHA
|
SM single fiber
|
20KM
|
HDMI, USB
|
□
|
|
VDA-4UHA
|
MM single fiber
|
2KM
|
HDMI, USB
|
□
|
|
VDA-1HA
|
MM duplex fiber
|
2KM
|
HDMI
|
□
|
|
VDA-2HA
|
SM duplex fiber
|
20KM
|
HDMI
|
□
|
|
VDA-3HA
|
SM single fiber
|
20KM
|
HDMI
|
□
|
|
VDA-4HA
|
MM single fiber
|
2KM
|
HDMI
|
□
|
1, Support 1080P，1920×1200 resolution
2, Max extension distance 2KM(MM fiber)/20KM(SM fiber)
3, Single/Duplex fiber transmission, pure hardware design, no driver needed, compatible with all operation systems, support plug and play

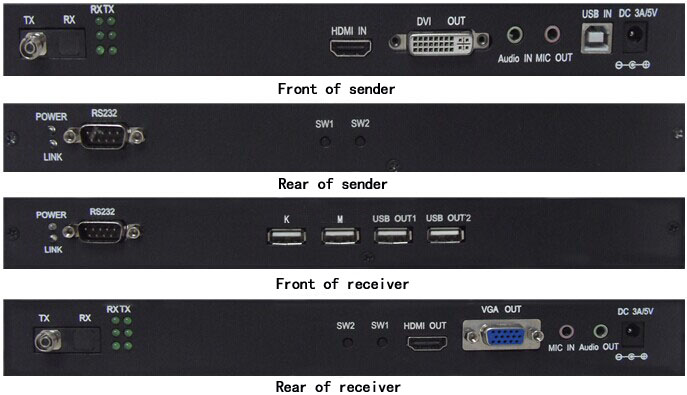

4, Support DVI/HDMI, USB, AUDIO, MIC and RS232 interface
5, Support bi-direction audio transmission
6, Serial function is optional
7, HDMI audio and 3.5mm AUDIO can not work at the same time, only one can work at a time
Product Specification:
|
Function
|
Input signal
|
Sender: 1way（HDMI, USB, AUDIO, MIC）
|
|
Output signal
|
Sender: 1way DVI-I
Receiver: 1way（HDMI, AUDIO, MIC）
,4way USB
|
|
Transmission distance
|
2KM（MMF）/20KM（SMF）
|
|
Video
|
Video input
|
HDMI
|
|
Video output
|
Sender: DVI-I
Receiver: HDMI
|
|
HDMI version
|
HDMI1.3
|
|
HDCP version
|
HDCP1.2
|
|
HDMI resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i，1920×1200
|
|
Video color format
|
24bit/deep color 30bit/deep color 36bit
|
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
|
Input/Output TMDS
|
0.5-1.5Vp-p(TTL)
|
|
Input/Output DDC
|
5Vp-p(TTL)
|
|
Input cable length
|
≤20m AWG26 HDMI 1.3 standard cable
|
|
Output cable length
|
≤20m AWG26 HDMI 1.3 standard cable
|
|
USB
|
Protocol
|
Support USB2.0 protocol
|
|
Serial
|
Interface
|
DB-9 (male)
|
|
Audio
|
Interface
|
3.5mm stereo audio jack
|
|
Optical
|
Optical input/output
|
SM/MM SC/FC
|
|
Wave length
|
850nm/1310nm/1550nm
|
|
Physical
|
Size(L× W× H)
|
Sender: 260mm×105mm×30mm
Receiver: 260mm×105mm×30mm
|
|
Housing
|
Metal
|
|
Color
|
Black
|
|
N.W.
|
1.49Kg
|
|
Power
|
Voltage range
|
Input: AC110V-220V，50/60HZ
Output: 5V/3A DC
|
|
Sender power consumption
|
<6W
|
|
Receiver power consumption
|
<5W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|
