VHD-3UHA(HDMI/DVI&USB&Audio&Mic Extend 20Km)
VHD-3UHA(HDMI/DVI&USB&Audio&Mic Extend 20Km)
Share to:

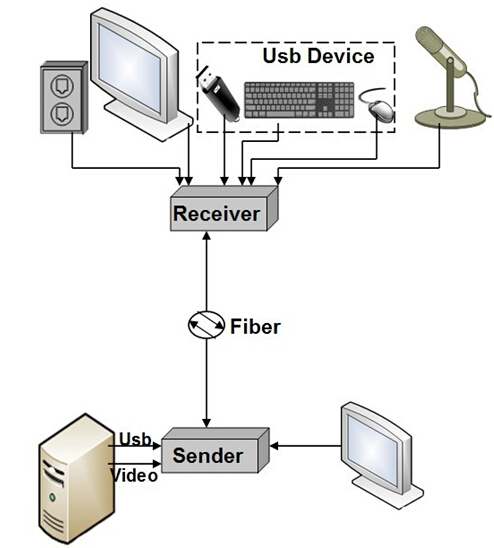

    This high-end fiber DVI/HDMI extender is designed specially for the projects that require transmitting high definition signals to remote location . The product includes a transmitter and a receiver, which can extend video, audio, RS232,USB and MIC interfaces of computer max up to 2km/20km over SM/MM fiber cable, so that users can see the picture image and hear the voice of computer remotely.

They are widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.

Product Feature:

    • Support 1920*1080 @ 60Hz.
    • Max extension distance 2KM(MM)/20KM(SM).
    • Support plug and play, compatible with all operation system.
    • Support VGA/DVI/HDMI、USB、audio、MIC、RS232 signals.
    • Support adjustment of sampling frequency, phase, and image horizontal/vertical position, as well as the signal    input indication.

Product Specification:

Video

I/O connector

VGA/DVI/HDMI

HDMI version

HDMI1.1 1.2 1.3

HDCP

HDCP1.2

HDMI resolution

1080p/1080i/720p/720i/576p/576i/480 p/480i

Video color format

24bit/deep color 30bit/deep color 36bit

Audio format

DTS/HD/Dolby- tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

TMDS

0.5-1.5Vp-p(TTL)

DDC

5Vp-p(TTL)

Input cable length

≤20m AWG26 HDMI 1.3 standard cable

Output cable length

≤20m AWG26 HDMI 1.3 standard cable

USB

Protocol

Support USB2.0 protocol

Audio

Connector

USB-to-3.5mm audio Jack

Optical

Connector

SM/MM  SC/FC type

Wave length

850nm/1310nm/1550nm

Physical

Size (L× W ×H)

Sender :164mm*115mm*26mm

Receiver:164mm*123mm*26mm

Case

metal

Color

Black

N.W.

0.75Kg

Power

Voltage

5V DC

Power consumption

15W

Environment

Working temperature

-15℃-55℃

Storage temperature

-40-80℃

Humidity

0-95% (non- condensing)

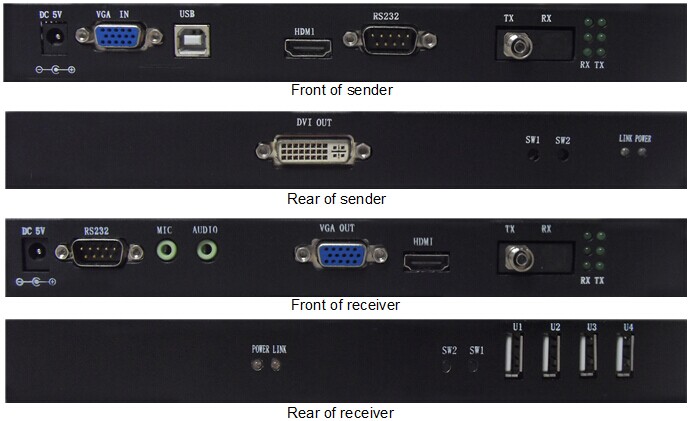

Front drawing:
  • VDA-3UHA(HDMI/DVI&USB&Audio&MIC Extend 20KM)
    VDA-3UHA(HDMI/DVI&USB&Audio&MIC Extend 20KM)
