Product Introduction:

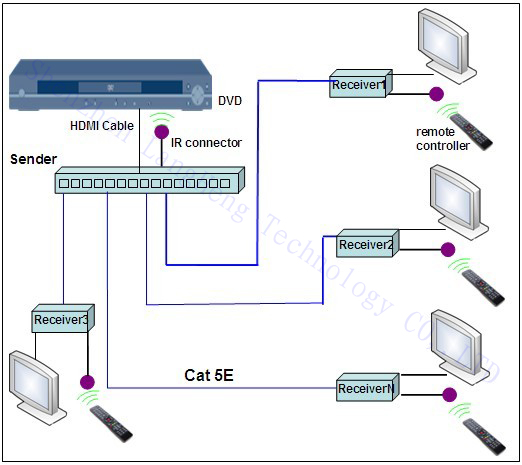

The whole set device includes a transmitter and multiple receivers, and the transmitter is designed as one HDMI input and 23 LAN outputs, each LAN port can connect to a HDMI receiver over cat5 cable, the receiver is with extension distance of 150meters and 200meters for option.
The product can be widely used in computing and monitoring system, big screen advertisement, education, and banking systems etc.
Product Feature:
1, Max resolution 1920*1080 @ 60Hz
2, Pure hardware design, no need software driver, plug and play
3, Also can support DVI signal
4, IR function (optional)
5, Serial function (optional)
Technical Specification:
Video and interfaces
|
IR
|
3.5mm phone jack
|
Serial
|
3.5mm phone jack
|
RJ-45
|
Cat5E/Cat6
|
HDMI version
|
HDMI1.3
|
HDCP version
|
HDCP1.2
|
Resolution
|
1080p/1080i/720p/720i/576p/576i/480p/480i
|
Video color format
|
24bit/deep color,30bit/deep color, 36bit
|
Audio format
|
DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
|
I/O TMDS signal
|
0.5-1.5Vp-p(TTL)
|
I/O DDC signal
|
5Vp-p(TTL)
|
Input cable length
|
≤20m AWG26 HDMI 1.3 standard cable
|
Output cable length
|
≤20m AWG26 HDMI 1.3 standard cable
|
Physical
|
Size(L×W× H)
|
364mmX95mmX30mm
|
Net weight
|
1.9Kg
|
Power Supply
|
Voltage
|
AC 100V~ 240V 50HZ/60HZ 0.5A
|
Environment
|
Working temperature
|
-15℃-55℃
|
Storage temperature
|
-40-80℃
|
Humidity
|
0-95% (Non-condensing)
|

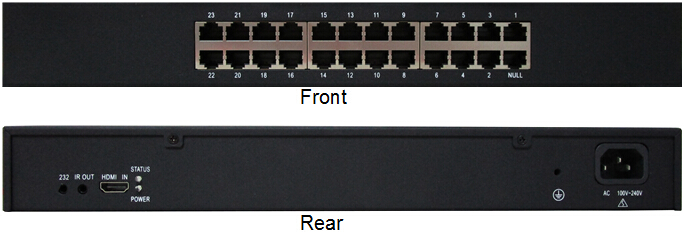

Front drawing:
