HDB-100DS(HDMI&RS232&IR Uncompressed extender 100 meters)
HDB-100DS(HDMI&RS232&IR Uncompressed extender 100 meters)
Share to:

Product Introduction

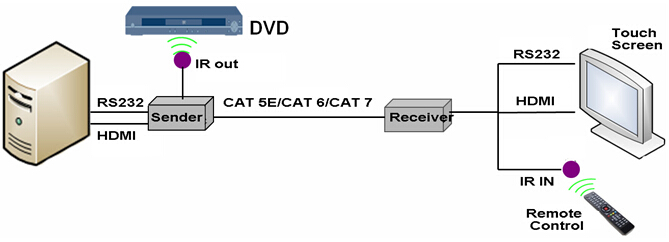

The device includes a sender (with “sender” mark) and a receiver (with “receiver” mark) , extends HDMI, RS232 and IR signals to remote places. Up to 90 meter with normal 8 core cat5e/6/7 cable, reach 100 meters with high quality cables from top brands.4K*2K Up to 80 meter with normal 8 core cat5e/6/7 cable, with high quality cables from top brands.

High bandwidth, no loss, no frame delay, plays real time HD video at remote places.

Widely used in computing and surveillance systems, big screen advertisement system, video wall, bank, stock market, education system etc.



Product Feature
● Works over single network cable, save cost
● Support HDMI1.1, 1.2, 1.3, 1.4 protocols
● Support HDCP
● 10G high bandwidth, no signal loss, no frame delay, high quality video, anti electromagnetic interference.
● Support 3D
● IR function for option

Specifications

Signals

Input

Sender: HDMI、IR、RS232 (one way each)

Output

Receiver:HDMI、IR、RS232 (one way each)

Video Parameters

HDMI Version

HDMI1.4

HDCP Version

HDCP1.2

HDMI Resolution

1080p/1080i/720p/720i/576p/576i/480p/480i

Up to 4K×2K

Color Format

24bit /deep 30bit /deep 36bit

Audio Format

DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD

Bandwidth

10Gbps

I/O TMDS Signals

0.5-1.5Vp-p(TTL)

I/O DDC Signals

5Vp-p(TTL)

IR

Connector

3.5mm Audio Jack

Signals

IR remote control signal

RS232

Connector

DB-9

Power

Operating Voltage

IN:AC110V-220V,50/60HZ

OUT:DC5V/2A

Power Consumption

Sender:5W

Receiver:5W

Physical Parameters

Size(LxWxH)

Sender:125mm×80mm×30mm

Receiver:125mm×80mm×30mm

Case

Iron

Color

Black

Environment

Storage Temperature

-40-80℃

Humidity

0-95% (No condense)

Working Temperature

-15℃-55℃
