Product Introduction

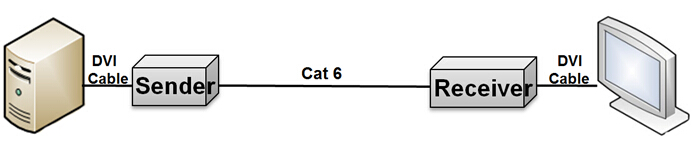

The device includes a sender (with “Sender” logo) and a receiver (with “Receiver” logo), which can transmit real-time DVI video signal to remote display.
The products can be widely used in computer and surveillance systems, large screen advertisement system, education system etc.
Features
1. Extends DVI up to 45m, uncompressed data, zero latency
2. Transmits over a single FTP(foiled twist pair) cable
3. Supports 1080P, 1920x1080@60Hz max
4. Supports HDMI too (with optional DVI to HDMI cable)
Parameters
Function
|
DVI Input
|
1 in
|
|
DVI Output
|
1 out
|
|
Range
|
45m
|
|
Video
|
Connector
|
DVI-I（DVI-D only）
|
|
Resolution
|
1080p, 1920x1080@60Hz max
|
|
Bandwidth
|
6.75Gbps
|
|
Port
|
RJ-45
|
For CAT6 FTP cable
|
|
Appearance
|
LxWxH (mm)
|
Sender : 79mm×64mm×26mm
|
|
Receiver : 79mm×64mm×26mm
|
|
Case
|
Aluminum
|
|
Color
|
Silver
|
|
Net Weight
|
0.2Kg
|
|
Power
|
Voltage
|
Input ：AC110V-220V，50/60HZ
Output：DC12V/1A
|
|
Sender power
|
<1W
|
|
Receiver power
|
<0.5W
|
|
Condition
|
Storage Temp
|
-40-80℃
|
|
Humidity
|
0-95% (no condense)
|
|
Operating Temp
|
-15℃-55℃
|

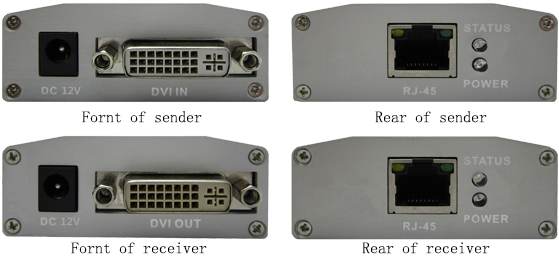

Front drawing
