VGA-R15 VGA&Audio Repeater

Share to：

Product Introduction:

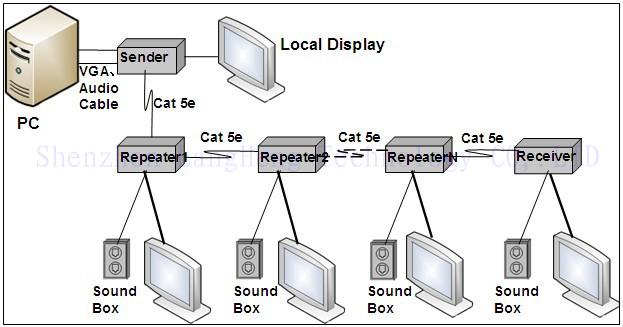

The device works in group of one sender, multiple repeaters and one receiver, which can transmit VGA and AUDIO signal up to 150meters by cat5e cable, and max can connect 15 repeaters. < /div>

The product can be widely used in big screen advertisement system, metro station display system, train coach display system, airport display system etc.

Product Feature:
1, Max resolution support 1920*1080 @ 60Hz
2, Extension distance per single pair 150meters, and can extend 150meters more after connecting repeater, multiple cascade operation available
3, Single cat5e transmission, pure hardware design, no need software driver, compatible with any OS

Product Specification:

Repeater	Number of input signal	1 channel
	Number of output signal	1 channel
	Extension distance	150meters
	Cascade	Max 15 times
Video specification	Video output	HD15PIN (female VGA)
	Video input	HD15PIN (male VGA)
	Video bandwidth	>350MHz(-3dB)
	synchronized signal	>200KHZ
	Video resolution	Support 1080p
Audio	Interface	3.5mm stereo audio jack
Audio	Bandwidth	10HZ~20KHZ
Connection interface	RJ-45	Cat5e/Cat6
Physical parameter	Size（L×W×H）	Sender: 108mm×74mm×30mm Repeater: 148mm×110mm×30mm Receiver: 108mm×74mm×30mm
	Net weight	Sender : 0.25KG Receiver:0.25KG Repeater: 0.5KG
	Housing	Sender& receiver: Aluminum case Repeater: Metal case
	Color	Sender& Receiver: Silver Repeater: Black
Power	Voltage	5V/3A DC
Power	Power consumption	Sender & receiver: <5W Repeater: <6W
Environment	Working temperature	-15℃-55℃
	Storage temperature	-40-80℃
	Humidity	0-95% (non-condensing)

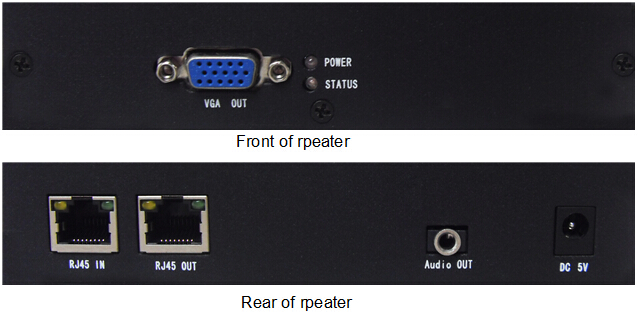

Front drawing:
