Product Introduction:
This set of equipment includes a sender and a receiver, which can transmit VGA video and audio signal of PC to a remote location over single network cable, the device supports HD video transmission at 1920×1080@60Hz resolution, and the extension distance per single pair is 200meters, it also support TCP/IP protocol and can connect network switch, multiple cascade operation is available.
This product can be widely used in video conference system, multimedia display system, medical display system, commercial presentation system etc.

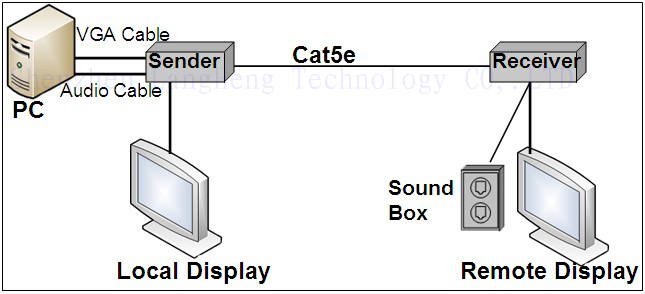

One-to-One direct connection diagram:

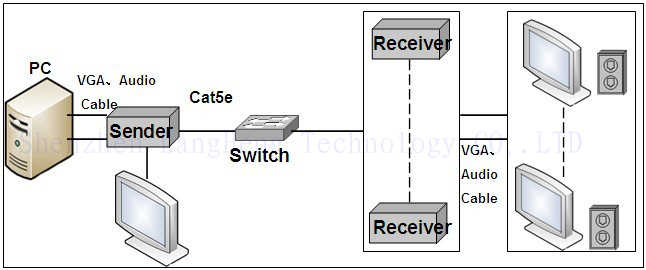

One-to-Many connection diagram:
Product Feature:
1, Max video resolution 1920×1080@60Hz
2, Extension distance 200meters, and can extend 200m more after connecting network switch, cascade operation is available
3, Single network cable transmission, pure hardware design, no need software driver
4, Support TCP/IP protocol, support one-to-many connection
5, No need to do any setting
Product Specification:
Function
|
Input signal
|
1-ch VGA and 1-ch AUDIO
|
|
Output signal
|
Sender: 1-ch VGA
Receiver:1-ch VGA+ 1-ch AUDIO
|
|
Transmission distance
|
200meters
|
|
Video and interfaces
|
Video input
|
HD15PIN (male VGA)
|
|
Video output
|
HD15PIN (female VGA)
|
|
Video bandwidth
|
>350MHz(-3dB)
|
|
synchronized signal
|
>200KHZ
|
|
Video resolution
|
1080p
|
|
Audio
|
3.5mm stereo audio
|
|
RJ-45
|
Cat 5E/Cat6
|
|
Physical
|
Size（L×W×H）
|
Sender: 108mm×74mm×30mm
Receiver: 108mm×74mm×30mm
|
|
N.W
|
0.5Kg
|
|
Case
|
Aluminum
|
|
Color
|
Silver
|
|
Power supply
|
Voltage
|
DC5V/2A
|
|
Sender power consumption
|
<5W
|
|
Receiver power consumption
|
<5W
|
|
Environment
|
Working temperature
|
-15℃-55℃
|
|
Storage temperature
|
-40-80℃
|
|
Humidity
|
0-95% (Non-condensing)
|
